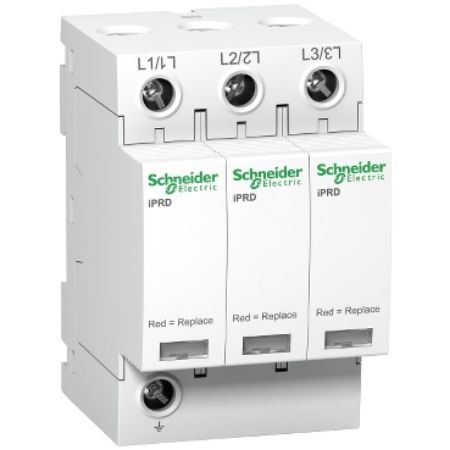

Picture of iPRD8 modular surge arrester - 3P - 350V
SKU:

A9L08300

iPRD8 modular surge arrester - 3P - 350V

Old price: $524.70 INC GST
$346.30 INC GST
Available for Shipping : 23-Sep-2025
iPRD8 modular surge arrester - 3P - 350V
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Circularity Profile
Declaration of conformity
Environmental Disclosure
Product Page Link
Product Data Sheet
This Acti9 iPRD8 surge arrester protects 3P installations. It allows quick replacement of damaged cartridges. The Imax maximum discharge current is 8kA .The In nominal discharge current is 2.5kA. The iPRD8r ensures secondary protection of loads to be protected and is placed in cascade with the incoming surge arresters. This surge arrester is required when the loads to be protected are at a distance of more than 10 m from the incoming surge arrester. The Uc maximum continuous operating voltage in common mode (between phase and earth) is 350VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.2kV. The Ue rated operational voltage is 230VAC or 400VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 54mm x (H) 85mm x (D) 69mm. The weight is 340g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.

Products specifications

Attribute name Attribute value
Main
Device short name iPRD8
Device application distribution
Range Acti9
Earthing system IT 230, TN-C
Standards IEC 61643-11:2011, EN 61643-11:2012
Range of product iPRD
Poles description 3P
Surge arrester type electrical distribution network
Quality labels NF, KEMA-KEUR
Product name Acti9 iPRD
Product or component type surge arrester with pluggable cartridge
Remote signalling without
Product certifications CE
Complementary
Residual current 0.6 mA
Tightening torque 3.5-3.5 N.m
Colour white (RAL 9003)
[Ue] rated operational voltage 230/400 V AC (+/- 10 %) at 50/60 Hz
Compatibility code iPRD8
Maximum [Up] voltage protection level common mode <1.2 kV type 3 L/PE, common mode <1.2 kV type 2 L/PE
[Uoc] open circuit voltage 10 kV type 3 common mode L/PE
Disconnector device type associated fuse gG 80 A - Icu 50 kA, associated fuse gG 25 A - Icu 15 kA, associated circuit breaker iC60H 10 A curve C - Icu 15 kA, associated circuit breaker IC60N 10 A curve C - Icu 10 kA, associated circuit breaker iC60L 10 A curve C - Icu 25 kA
Connections - terminals tunnel type terminal (top or bottom) 4-16 mm² flexible with ferrule, tunnel type terminal (top or bottom) 4-16 mm² flexible, tunnel type terminal (top or bottom) 2.5-25 mm² rigid
[Uc] maximum continuous operating voltage common mode: 350 V L/PE
[Ut] temporary overvoltage 1455 V L/PE 200 ms safe failure mode, 422 V L/PE 720 ms withstand, 1200 V N/PE 200 ms safe failure mode, 337 V L/N 5 s withstand
Surge arrester class type type 2 + 3
Height 85 mm
Surge arrester technology MOV
Depth 69 mm
Width 54 mm
Net weight 340 g
Maximum discharge current common mode: 8 kA L/PE
9 mm pitches 6
Nominal discharge current common mode: 2.5 kA (L/PE)
Mounting mode clip-on (DIN rail)
Environment
Relative humidity 5-95 %
Ambient air temperature for storage -40-85 °C
Ambient air temperature for operation -25-60 °C
IK degree of protection IK03 conforming to IEC 62262
Operating altitude 2000 m
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7 cm
Package 1 Width 8 cm
Package 1 Length 9 cm
Package 1 Weight 347 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 9 cm
Package 2 Width 10 cm
Package 2 Length 28 cm
Package 2 Weight 1.449 kg
Unit Type of Package 3 3
Number of Units in Package 3 36
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 13.585 kg
