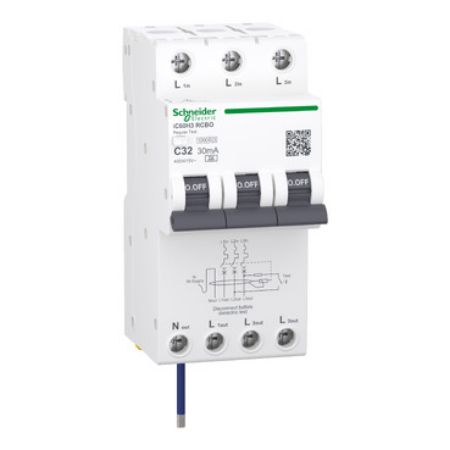

Picture of Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H3, 3P+Ns, C Curve, 32A, 30mA, A type, 10000A
SKU:

A9DC1932

Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H3, 3P+Ns, C Curve, 32A, 30mA, A type, 10000A

Old price: $490.60 INC GST
$323.80 INC GST
Available for Shipping : 03-Aug-2025
Product Selector
Acti9 iC60H3 RCBO
  • 3P+Ns, C Curve, 32A, 30mA, 10,000A breaking capacity.
  • Compact with 3 modules.
  • Easy upgrade from MCB to RCBO.
  • Quick installation with fewer connections.
  • A type earth leakage protection with instant response.
  • Works with Acti9 System, mounts on Chassis or DIN Rail.
  • Convenient for adding or repairing existing setups.
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Environmental Disclosure
Circularity Profile
Catalog
Product Page Link
Product Data Sheet

The Acti9 iC60 (A9DC1932) is a modular residual current breaker with overcurrent protection (RCBO). This 3P+N circuit breaker protects 3 poles and has a rated current of 32A with a C tripping curve. It provides A-type earth leakage protection, with a sensitivity of 30mA and instantaneous time delay for leakage protection.

It has a short-circuit breaking capacity (Icn) of up to 10,000A, following IEC 61009-2-2 standards. The fast-closing mechanism, independent of manual operation, increases its service life. This breaker complies with AS/NZS 61009.1 standards, offering electrical endurance up to 5,000 cycles and mechanical endurance up to 20,000 cycles.

The operational voltage is 400/415 VAC, with a rated insulation voltage of 500VAC and a rated impulse withstand voltage of 4kV. It operates at a frequency of 50Hz/60Hz and can be mounted on a DIN rail or chassis.

The product is white (RAL9003) and has the following dimensions:
54mm (width), 112mm (height), and 77.2mm (depth), weighing 462g.


It has an IP20 protection rating, according to IEC/EN 60529 standards. Its operating temperature range is -5°C to +60°C, and its storage temperature range is -25°C to +70°C.

Products specifications

Attribute name Attribute value
Main
Circuit breaker application distribution
Device short name iC60H3 RCBO
Breaking capacity 10000 A Icn at 400/415 V
Range Acti9
Earthing system TN
Curve code C
Poles description 3P + Ns
Product name Acti9 iC60 RCBO
Product or component type residual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity 30 mA
[In] rated current 32 A at 30 °C
Complementary
Provision for padlocking lead seal, padlockable with padlock Ø 4 mm
[Uimp] rated impulse withstand voltage 4 kV
Grid distance 45 mm
Suitability for isolation yes conforming to IEC 61009-1
Electrical durability 5000 cycles
Connections - terminals screw clamp terminal (top) 1-16 mm² flexible, screw clamp terminal (top) 1-25 mm² rigid without cable end
Comb busbar and distribution block compatibility YES
Earth-leakage protection class type A
Locking options description ON/OFF locking facilities
Earth-leakage protection integrated
Number of protected poles 3
Test button operating voltage 260-457 V
Residual current tripping technology voltage dependent
Height 112 mm
[Ics] rated service breaking capacity 7500 A
Trip unit technology thermal-magnetic
Neutral position left
[Ui] rated insulation voltage 500 V
Earth-leakage protection time delay instantaneous
Net weight 462 g
Surge current 250 A
9 mm pitches 6
Device location in system outgoer
Network type AC
Tightening torque power circuit: 2.5-2.5 N.m bottom, power circuit: 2.5-2.5 N.m top
Colour white
Mechanical durability 20000 cycles
Mounting mode clip-on
Control type toggle
Wire stripping length power circuit: 14 mm for top connection, power circuit: 11 mm for bottom connection
[Icw] rated short-time withstand current Icw: 250 A during 8/20 µs impulse withstand
[Ue] rated operational voltage 400/415 V
Depth 77.2 mm
Width 54 mm
Local signalling ON/OFF indication
Limitation class 3
Mounting support chassis, DIN rail
Network frequency 50/60 Hz
Operating voltage earthleakage protection 150-457 V
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -25-70 °C
Tropicalisation 2
IP degree of protection IP20
Ambient air temperature for operation -5-60 °C
Standards IEC 61009-2-2, IEC 61009-1, AS/NZS 61009.1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.7 cm
Package 1 Width 6.6 cm
Package 1 Length 9 cm
Package 1 Weight 539 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 9.376 kg
