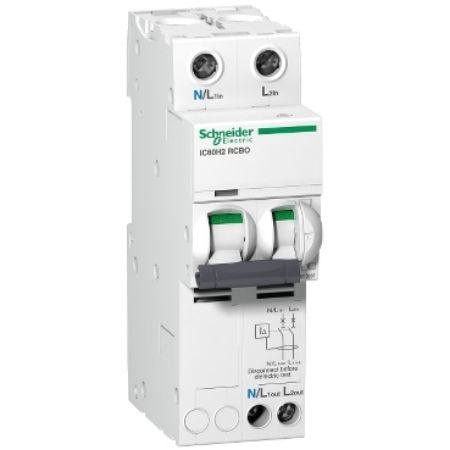

Acti9, Residual current breaker with overcurrent protection (RCBO), Acti9 iC60H2 RCBO, 2P, 16A, 30mA, A type, 10000A

Old price: $241.89 INC GST
$159.65 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Acti9 iC60H2 Residual current breaker with overcurrent protection RCBO – 2P, 16A, 30mA, Type A, 10000A
  • Protection against electric shock by direct contact.
  • Fault tripping indication via the dedicated Visi-Trip window.
  • Additional safety in case of neutral loss.
  • Combines short-circuit and overload protection in one unit.
  • One module width – ideal for retrofitting where space is limited.
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet

The (A9D11216) Acti9 iC60 is a compact residual current breaker with overcurrent protection (RCBO) designed for reliable circuit safety. This 2-pole breaker offers protection on both poles and has a rated current of 16A with a C tripping curve. It features Type A earth leakage protection with a 30mA sensitivity and instantaneous response time.

The breaker has a high short-circuit breaking capacity of up to 10,000A, meeting the IEC 61009-2-2 standard. The Visitrip indicator makes it easy to identify the faulty circuit, reducing downtime. Additionally, the Visisafe green strip ensures complete contact disconnection, allowing safe downstream maintenance. Its fast-closing mechanism, independent of manual operation, enhances durability.

Built to meet IEC 61009-1 and IEC 61009-2-2 standards, this RCBO offers an impressive electrical endurance of up to 5,000 cycles and mechanical endurance up to 20,000 cycles. It operates at a voltage of 240V AC, with an insulation voltage of 400V AC and an impulse withstand voltage of 4kV. The frequency is 50Hz.

The RCBO is DIN rail mountable and measures 36mm in width, 110mm in height, and 75.5mm in depth, with a weight of 332g. It occupies four 9mm pitches on the rail and comes in white (RAL9003). For protection, it has an IP20 rating, which increases to IP40 when placed in a modular enclosure.

The breaker performs reliably in temperatures ranging from -15°C to 60°C during operation and can be stored in temperatures between -40°C and 85°C. Its design ensures a long-lasting and robust solution for circuit protection.

Products specifications

Attribute name Attribute value
Main
Device short name iC60H2 RCBO
Breaking capacity 10000 A Icn at 230/240 V AC 50/60 Hz
Range Acti9
Earthing system IT, TT, TN
Curve code C
Poles description 2P
Circuit breaker application distribution
Product name Acti9 iC60 RCBO
Product or component type residual current breaker with overcurrent protection (RCBO)
Earth-leakage sensitivity 30 mA
[In] rated current 16 A at 50 °C
Complementary
Tightening torque power circuit: 2-2 N.m bottom, power circuit: 3.5-3.5 N.m top
Provision for padlocking padlockable with padlock Ø 4 mm
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Mechanical durability 20000 cycles
Suitability for isolation yes
Electrical durability 5000 cycles
Mounting mode clip-on
Control type toggle
Wire stripping length power circuit: 14 mm for top connection, power circuit: 13 mm for bottom connection
Connections - terminals screw clamp terminal (bottom) 1-10 mm² flexible, screw clamp terminal (bottom) 1-16 mm² rigid without cable end, screw clamp terminal (top) 1-16 mm² flexible, screw clamp terminal (top) 1-25 mm² rigid without cable end
Comb busbar and distribution block compatibility NO
Earth-leakage protection class type A
Locking options description ON/OFF locking facilities
Earth-leakage protection integrated
Number of protected poles 2
[Icw] rated short-time withstand current Icw: 250 A during 8/20 µs impulse withstand
Residual current tripping technology voltage dependent
Height 110 mm
[Ics] rated service breaking capacity 7500 A at 230/240 V AC 50/60 Hz
[Ue] rated operational voltage 230/240 V AC 50/60 Hz
Trip unit technology thermal-magnetic
Depth 75.5 mm
Width 36 mm
Neutral position left
Local signalling ON/OFF indication
[Ui] rated insulation voltage 400 V AC 50/60 Hz
Earth-leakage protection time delay instantaneous
Net weight 332 g
Surge current 250 A
Limitation class 3
9 mm pitches 4
Device location in system outgoer
Breaking capacity code H2
Network type AC
Mounting support DIN rail
Contact position indicator yes
Network frequency 50 Hz
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -15-60 °C
Standards AS/NZS 61009.1, IEC 61009-2-2, IEC 61009-1
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.6 cm
Package 1 Width 4.4 cm
Package 1 Length 9.2 cm
Package 1 Weight 306.0 g
Unit Type of Package 2 2
Number of Units in Package 2 27
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 8.668 kg
Unit Type of Package 3 3
Number of Units in Package 3 864
Package 3 Height 70.0 cm
Package 3 Width 120.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 276.384 kg
