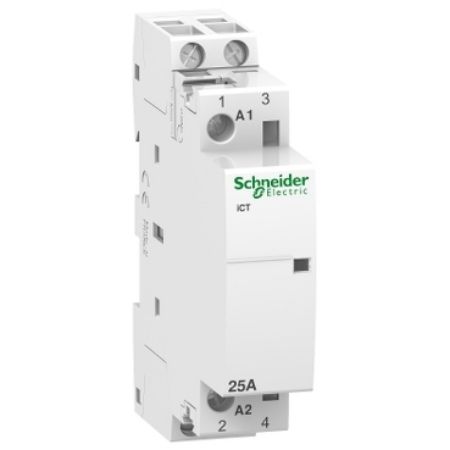

Picture of iCT 25A 2NO 24V 50Hz Contactor
SKU:

A9C20132

iCT 25A 2NO 24V 50Hz Contactor

Old price: $104.50 INC GST
$68.97 INC GST
Available for Shipping : 02-Oct-2025
Product Selector
iCT 25A 2NO 24V 50Hz Contactor
  • Works with all Acti9 control auxiliaries for lighting, heating, and ventilation control.
  • Suitable for control circuits and remote switching of small motors, such as fans and mixers.
  • Meets IEC 61095 standard for reliable performance and safety.
  • Includes a mechanical contact position indicator for easy status monitoring.
  • Features a clip-on system for quick electrical and mechanical connections with auxiliaries up to 25A.
  • Designed for low noise operation and provides a large labeling area for easy identification.
  • Complies with global RoHS and REACH regulations, ensuring safety for both users and the environment.
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Product Page Link
Product Data Sheet

Acti9 iCT (A9C20132) is a modular contactor for remote control applications. Providing a 2P configuration with two normally open contacts. It supports 25A for AC-7a, 8.5A for AC-7b, 250VAC operating voltage, and 24VAC control voltage.

This device is best for managing control circuits and remotely switching lighting loads, small motors (such as fans and mixers), or HVAC systems. It works seamlessly with all Acti9 control auxiliaries, making it perfect for lighting, heating, and ventilation control needs.

The product meets the IEC/EN 61095 standard and handles up to 100,000 cycles for AC-7A or AC-1 and 30,000 cycles for AC-7C, AC-7B, AC-3, AC-5A, and AC-5B. It supports six switching operations per minute.

It has a 500VAC rated insulation voltage, 4kV rated impulse withstand voltage, and a pollution degree of 2. Designed for DIN rail mounting, it comes with a compact 18mm width and dimensions of 81mm (W) x 18mm (H) x 68.5mm (D). The product colour is white (RAL9003) and offers IP20 protection (IP40 when enclosed). It operates in temperatures from -5°C to 60°C and can be stored between -40°C and 70°C.

Related products

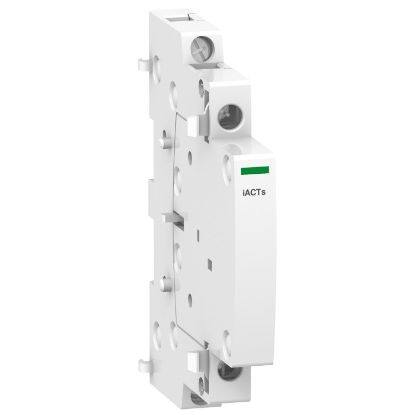

Picture of Acti9, Remote indication auxiliary, Acti9 iACTs, 1 NO + 1 NC

Acti9, Remote indication auxiliary, Acti9 iACTs, 1 NO + 1 NC

A9C15914
$99.03 INC GST $150.04 INC GST
View Detail
Picture of Acti9, Spacer, Acti9, set of 5, 9 mm pitch, white

Acti9, Spacer, Acti9, set of 5, 9 mm pitch, white

A9A27062
$5.48 INC GST $8.31 INC GST
View Detail

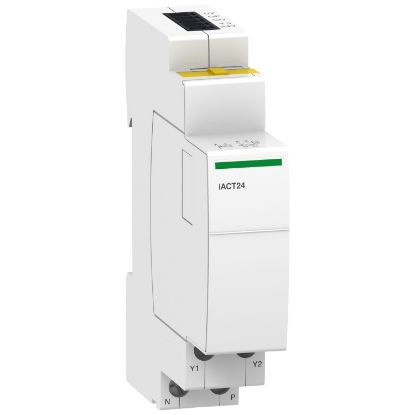

Picture of Acti9, iACT - 24V DC control and auxiliary contact 1 NO with Ti24 PLC interface

Acti9, iACT - 24V DC control and auxiliary contact 1 NO with Ti24 PLC interface

A9C15924
$143.75 INC GST $217.80 INC GST
View Detail
Picture of Acti9, double control input auxiliary iACTc 230...240 V AC

Acti9, double control input auxiliary iACTc 230...240 V AC

A9C18308
$205.10 INC GST $310.75 INC GST
View Detail

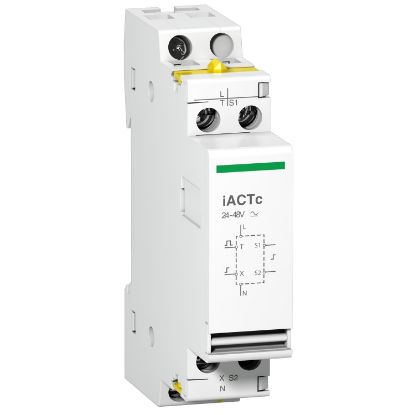

Picture of Acti9, double control input auxiliary iACTc 24…48 V AC
