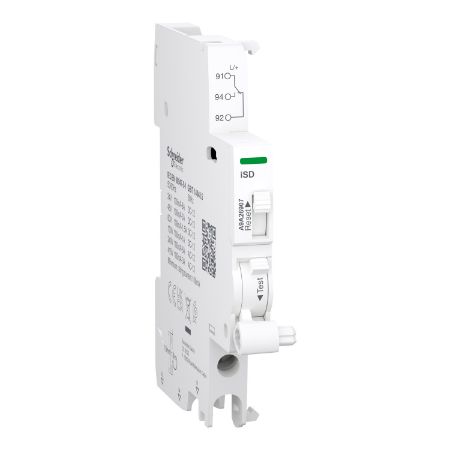

Picture of Auxiliary contact, Acti9 A9A, iSD, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection
SKU:

A9A26907

Auxiliary contact, Acti9 A9A, iSD, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection

Old price: $76.23 INC GST
$50.31 INC GST
Available for Shipping : 27-Jul-2025
Auxiliary contact, Acti9 A9A, iSD, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection
  • Can report the signaling to an Opening for Default Devices status
  • Compatible with standard applications with current from 100mA up to 6A
  • Compatible with iC60, iID, iC40, and iSW-NA
  • To be fixed with clips directly on the left of the MCB
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Instruction sheet
Brochure
Environmental Disclosure
Circularity Profile
Product Page Link
Product Data Sheet
This Acti9 electrical auxiliary is a modular fault contact used as remote indication of tripping upon a fault of the associated device. In AC network, the In rated current is from 100mA to 6A with operating frequency of 50Hz to 60Hz at 240VAC, and from 100mA to 3A with operating frequency of 50Hz to 60Hz at 415VAC. In DC network, the In rated current always begins at 100mA at 24VDC to 130VDC. It goes up 6A at 24VDC, 2A at 48VDC, 1.5A at 60VDC and 1A at 130VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial or buildings. This fault contact is compatible with Acti9 ranges such as iC60, iID, iDPN ARC, iDPN Vigi, iDPN Vigi ARC, iSW, iC40, iC40 ARC, iCV40, iC40 XA, iCV40 XA, iC60 RCBO. This fault contact is compatible with Acti9 ranges such as Acti9 iDT40, iDT40 XA and iDD40. The iSD is either used for device short name or compatibility code. The mechanical indicator is provided on the product for signalling (Local). It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm² to 4mm². It has a screw clamp terminal connection at bottom. The connection allows flexible copper cable. The cable cross section capacity is from 0.5mm² to 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows rigid copper cables (2 cables). The cable cross section capacity is 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables). The cable cross section capacity is 1.5mm². The rated insulation voltage (Ui) is up to 500V. It has a rated impulse withstand voltage (Uimp) of 4kV. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. The product colour is white (RAL 9003). The pollution degree is 3. The level of tropicalisation is treatment 2. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20. The operating temperature is from -35°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN/IEC 60947-5-1 and GB/T 14048.5 standards. This product is certified with CE and UKCA markings.

Products specifications

Attribute name Attribute value
Main
Device short name iSD
Range Acti9
[In] rated current 0.1-1 A at 130 V, DC,  0.1-1.5 A at 60 V, DC,  0.1-2 A at 48 V, DC,  0.1-6 A at 24 V, DC,  0.1-3 A at 415 V, AC 50/60 Hz,  0.1-6 A at 24...240 V, AC 50/60 Hz
Signal contacts composition 1 C/O
Product or component type fault contact
9 mm pitches 1
Complementary
Product compatibility single terminal
Tightening torque 1-1 N.m bottom
Colour white
[Uimp] rated impulse withstand voltage 4 kV
Compatibility code iSD
Mounting mode clip-on
Wire stripping length 10 mm
Comb busbar and distribution block compatibility top: YES
Height 86 mm
Depth 73 mm
Market segment buildings, small commercial
Width 9 mm
Local signalling mechanical indicator
[Ui] rated insulation voltage 500 V
Mounting location left side of circuit-breaker
Net weight 33 g
Connections - terminals screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible with ferrule, screw clamp terminal (bottom) 2 cable(s) 2.5-2.5 mm² - rigid, screw clamp terminal (bottom) 1 cable(s) 1-4 mm² - rigid, screw clamp terminal (bottom) 1 cable(s) 0.5-2.5 mm² - flexible
Range compatibility Acti9 Acti9 iSW-NA, Acti9 Acti9 iC40, Acti9 Acti9 iDPN Vigi, Acti9 Acti9 RCA, Acti9 Acti9 ARA, Acti9 Acti9 iID, Acti9 Acti9 iC60 RCBO, Acti9 Acti9 iC60
Mounting support DIN rail
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -40-85 °C
Pollution degree 3
IP degree of protection IP20
Tropicalisation 2
Ambient air temperature for operation -35-70 °C
Quality labels CMIM, CCC, EAC
Standards GB/T 14048.5, EN/IEC 60947-5-1
Product certifications UKCA, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.100 cm
Package 1 Width 8.000 cm
Package 1 Length 9.300 cm
Package 1 Weight 40.000 g
Unit Type of Package 2 2
Number of Units in Package 2 12
Package 2 Height 8.500 cm
Package 2 Width 9.700 cm
Package 2 Length 27.000 cm
Package 2 Weight 569.000 g
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 6.380 kg
Unit Type of Package 4 4
Number of Units in Package 4 960
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 57.148 kg
