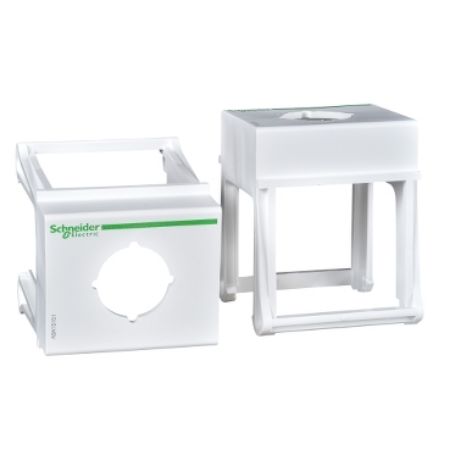

Picture of DIN rail mounting base - Ø 22 mm units - for control and signalling unit
SKU:

A9A15151

DIN rail mounting base - Ø 22 mm units - for control and signalling unit

Old price: $20.02 INC GST
$13.21 INC GST
Available for Shipping : 24-Jul-2025
DIN rail mounting base - Ø 22 mm units - for control and signalling unit
  • Suitable with Acti9 modular cabinets or enclosures
  • Allow to mount control or signalling unit on DIN rail
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Product Page Link
Product Data Sheet
This Acti9 button holder is for buttons, switches and indicators with metal or plastic flange of the SE XB4, XB5 type. It is dedicated to 22mm diameter button for control and signalling units. It could be used for control and indications auxiliaries as push-buttons, emergency stops, switches, light indicators. It is suitable for tertiary and industrial applications. It can be attached to a symmetrical 35mm rail, in modular cabinets or enclosures. The color is white (RAL9003). The drilling diameter is 22.3mm. It is a self-extinguishing material. The width in 9mm pitches is 6. The dimensions are (W) 54mm x (H) 60mm x (D) 66,7mm.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 1
Button and pilot light accessory type mounting support on DIN rail
Range Acti9
Control button component destination command unit
Range of product Modicon M221, Harmony XB5, Harmony XB4
Complementary
Colour code RAL 9003
Colour tint white
Market segment small commercial
Compatibility code XB4
Product compatibility XB5, XB4
Drilling diameter 22.3 mm
Mounting location in cabinet, enclosure
Net weight 0.04 kg
Material insulated material
Internal depth 60 mm
9 mm pitches 6
Fixing mode by clips
Mounting support 35 mm symmetrical rail
Diameter 22 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.600 cm
Package 1 Width 5.400 cm
Package 1 Length 6.000 cm
Package 1 Weight 28.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 8.900 cm
Package 2 Width 9.500 cm
Package 2 Length 18.300 cm
Package 2 Weight 157.000 g
Unit Type of Package 3 3
Number of Units in Package 3 96
Package 3 Height 30.000 cm
Package 3 Width 40.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 4.812 kg
Unit Type of Package 4 4
Number of Units in Package 4 384
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 28.868 kg

Related products

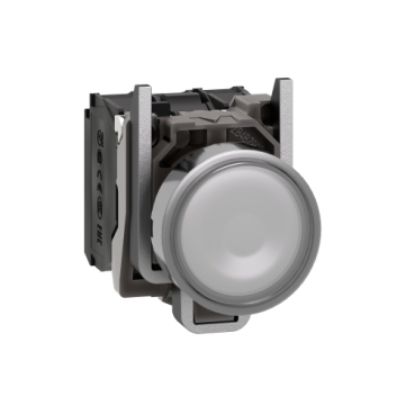

Illuminated push button, Harmony XB4, metal, white flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

XB4BW31B5
$119.78 INC GST $153.56 INC GST
View Detail

Illuminated push button, Harmony XB4, metal, green flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

XB4BW33B5
$119.78 INC GST $153.56 INC GST
View Detail

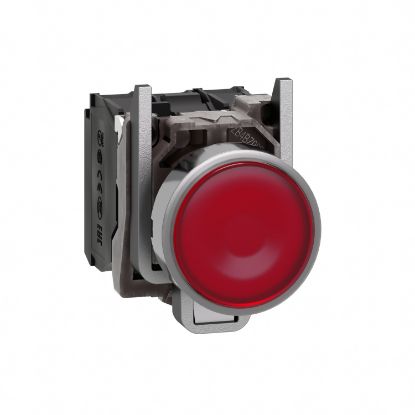

Illuminated push button, Harmony XB4, metal, red flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC

XB4BW34B5
$119.78 INC GST $153.56 INC GST
View Detail

Push button, metal, Harmony XB4, flush, black, 22mm, spring return, unmarked, 1NO

XB4BA21
$45.90 INC GST $58.85 INC GST
View Detail

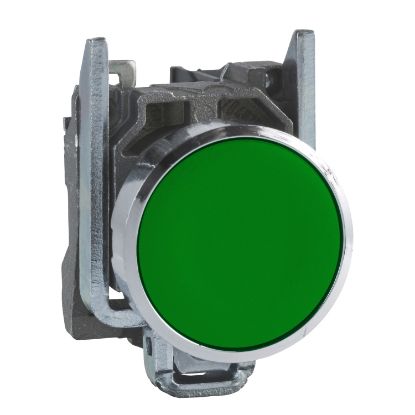

Push button, metal, Harmony XB4, flush, green, 22mm, spring return, unmarked, 1NO
