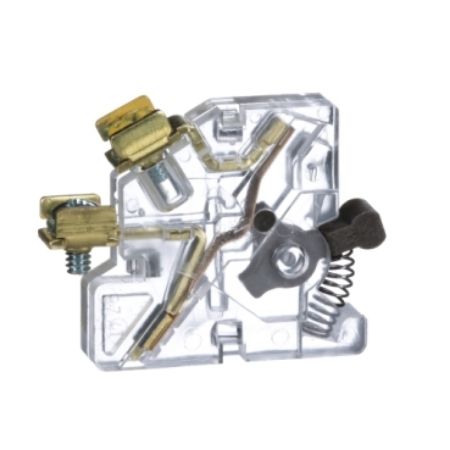

Picture of NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NC contact, internal, nonconvertible
SKU:

9999SX12

NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NC contact, internal, nonconvertible

Old price: $241.89 INC GST
$152.39 INC GST
Available for Shipping : 02-Sep-2025
NEMA Motor Starter and contactor, Type S, auxiliary contact, 1 NC contact, internal, nonconvertible
  • Customizable with hundreds of combinations
  • Robust design and reliable build
  • Easy to Service with replaceable parts
  • Available in NEMA Sizes 00 to 7
  • 600 Volts maximum
Be the first to review this product
Manufacturer: Square D
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This internal nonconvertible contact is often used as part of the electrical interlock on reversing contactors and starters. This auxiliary contact has one normally closed contact. Auxiliary contact module has a NEMA B600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 3.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.

Products specifications

Attribute name Attribute value
Main
Product destination starter,  contactor
Product or component type Auxiliary Contact Module
Range of product type S
Complementary
Rated breaking capacity 5 A at <= 600 V AC for resistive control circuit conforming to UL 508, 0.6 A at 600 V AC for inductive control circuit conforming to UL 508, 0.75 A at 480 V AC for inductive control circuit conforming to UL 508, 1.5 A at 240 V AC for inductive control circuit conforming to UL 508, 3 A at 120 V AC for inductive control circuit conforming to UL 508
NEMA size 2, 0, 1
Auxiliary contact composition 1 NC
[Ue] rated operational voltage <= 600 V AC 50/60 Hz
Environment
Product certifications UL listed, UL recognized, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.302 cm
Package 1 Width 5.842 cm
Package 1 Length 7.62 cm
Package 1 Weight 31.752 g
