Picture of Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
SKU:

9422ATEF101

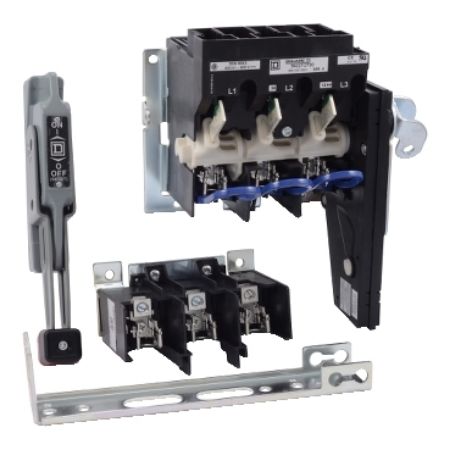

Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4

Old price: $2,092.20 INC GST
$1,318.09 INC GST
Available for Shipping : 01-Sep-2025
Operating mechanism, flange mounted, variable depth, 100A, 600V, fuseholder, switch mechanism, 6 inch handle, NEMA 4
  • Used with all disconnect switch and circuit breaker installations
  • Designed for variable depth, flange mounting applications
  • Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
  • Two mounting methods offered for flexibility
  • Disconnect switches were designed for control panel installations
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Product Page Link
Product Data Sheet
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 100 Amps up to 250 V and 100 Amps up to 600 V. This 100 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #10 to #0 AWG with copper wire and #6 to #0 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified

Products specifications

Attribute name Attribute value
Main
Product or component type Disconnect Switch
Range of product 9422T
Disconnector device type fusible disconnect switch
Complementary
Motor power hp 20 hp at 250 V DC, 75 hp at 575 V AC, 60 hp at 460 V AC, 30 hp at 230 V AC, 25 hp at 200 V AC
[In] rated current 100 A
Fuse type J, K, H, R
Associated fuse rating 100 A at 250/600 V
Product mounting flange rod variable depth
Provided equipment 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
Environment
Product certifications CSA, UL recognized
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 18.034 cm
Package 1 Width 28.194 cm
Package 1 Length 40.894 cm
Package 1 Weight 4.418 kg
