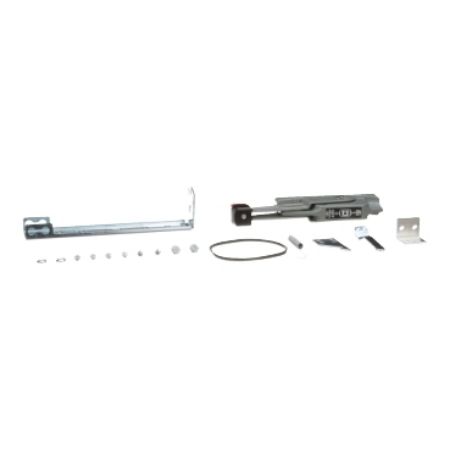

Picture of Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 1, 3R, 4, 12 enclosure
SKU:

9422A1

Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 1, 3R, 4, 12 enclosure

Old price: $363.55 INC GST
$229.04 INC GST
Available for Shipping : 02-Sep-2025
Operating mechanism, flange mounted, variable depth, handle mechanism, 6in handle, NEMA 1, 3R, 4, 12 enclosure
  • Used with all disconnect switch and circuit breaker installations
  • Designed for variable depth, flange mounting applications
  • Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
  • Two mounting methods offered for flexibility
  • Disconnect switches were designed for control panel installations
Be the first to review this product
Manufacturer: Square D
User guide
Instruction sheet
Catalog
Product Page Link
Product Data Sheet
Handle mechanism is used with circuit breaker variable depth and cable operating mechanisms. Kit contains all of the parts required to mount the handle to the flange of the enclosure. Handle is used with 30A to 200A, 9422 switches and all circuit breaker mechanisms. Handle is suitable for right or left hand flange mounting. The handle is 6 inches long. This handle is used on NEMA Type 1, 3, 3R, 4 sheet steel and 12 enclosures. Handle mechanism is UL Component Recognized.

Products specifications

Attribute name Attribute value
Main
Product or component type Handle Mechanism
Range of product 9422A
Product destination all circuit breaker mechanisms, disconnect switches (30...200 A)
Complementary
Specificity of operator variable depth
Product compatibility NEMA 1/3/3R/4/12 enclosures
Net weight 1.26 kg
Length 6 in
Product destination disconnect switches (30...200 A),  all circuit breaker mechanisms
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.572 cm
Package 1 Width 9.652 cm
Package 1 Length 23.876 cm
Package 1 Weight 1.247 kg
Unit Type of Package 2 2
Number of Units in Package 2 300
Package 2 Height 101.600 cm
Package 2 Width 101.600 cm
Package 2 Length 121.920 cm
Package 2 Weight 381.017 kg
