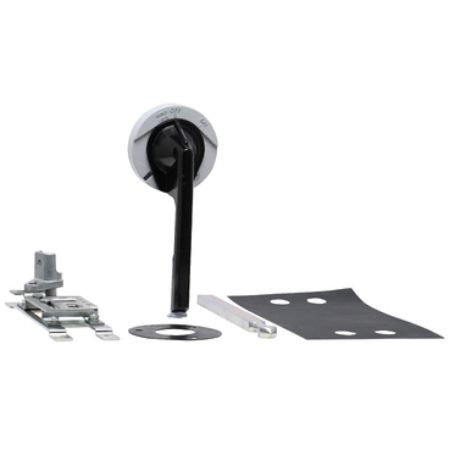

Picture of Circuit Breaker Mechanism, rotary handle, 250A mechanism, 6 inch handle, standard shaft, for KAL/KCL/KHL circuit breakers
Picture of Circuit Breaker Mechanism, rotary handle, 250A mechanism, 6 inch handle, standard shaft, for KAL/KCL/KHL circuit breakers
Picture of Circuit Breaker Mechanism, rotary handle, 250A mechanism, 6 inch handle, standard shaft, for KAL/KCL/KHL circuit breakers
SKU:

9421LP1

Circuit Breaker Mechanism, rotary handle, 250A mechanism, 6 inch handle, standard shaft, for KAL/KCL/KHL circuit breakers

Old price: $187.44 INC GST
$118.09 INC GST
Available for Shipping : 26-Aug-2025
Circuit Breaker Mechanism, rotary handle, 250A mechanism, 6 inch handle, standard shaft, for KAL/KCL/KHL circuit breakers
  • Used with all disconnect switch and circuit breaker installations
  • Designed for variable depth, flange mounting applications
  • Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
  • Two mounting methods offered for flexibility
  • Disconnect switches were designed for control panel installations
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Product Page Link
Product Data Sheet
Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This operating mechanism kit will work with KAL, KCL and KHL circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250A. Proper circuit breaker must be ordered separately. Kit contains a 6 inch long handle that is rated NEMA 1/3R/12. The kit contains a standard shaft. The mounting depth of this kit is 6.25 to 11.19 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.

Products specifications

Attribute name Attribute value
Main
Product or component type Circuit Breaker Mechanism
Range of product 9421L
Complementary
Shaft type standard
Length 6 in
Environmental
Product compatibility NEMA 1/3R/12 enclosure
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.43 cm
Package 1 Width 17.272 cm
Package 1 Length 22.352 cm
Package 1 Weight 1.755 kg
