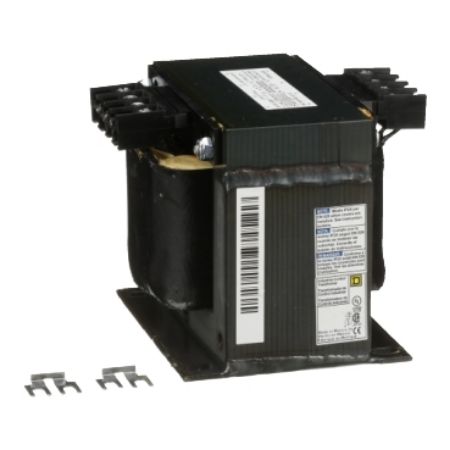

Picture of Transformer, Type T, industrial control, 750VA, 1 phase, 240x480V primary, 120/240V secondary, 115C rise
SKU:

9070T750D31

Transformer, Type T, industrial control, 750VA, 1 phase, 240x480V primary, 120/240V secondary, 115C rise

$1,676.40 INC GST
Available for Shipping : 17-Aug-2025
Transformer, Type T, industrial control, 750VA, 1 phase, 240x480V primary, 120/240V secondary, 115C rise
  • Type T's ability to handle high inrush current makes it reliable for contactors, starters, solenoids, and relays
  • Dual primary transformers allow flexibility to produce needed secondary outputs
  • This Type T single phase 750VA transformer is designed for 240x480VAC primary with 120/240VAC secondary
  • These transformers carry the cUL and UL labels and are self certified to the EN standards and carry a CE mark
  • Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
Type T is our most popular and complete line of control transformers and is best choice if size and cost are of concern. These transformers were design for top performance which is why it uses low impedance windings so it can accommodate higher inrush current but still regulate the voltage. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. Type T transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 750VA and is single phase. It has a 240/480 V primary voltage and 120/240 V secondary voltage with a temperature rise of 115 °C. Dimensions for this product are 4.51 in (H), 5.25 in (W), 5.61 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC2. This transformer complies to UL, CE & CSA standards.

Products specifications

Attribute name Attribute value
Main
Product or component type Industrial Control Transformer
Range of product T
Complementary
Primary voltage 220 x 440 V: 110/220 V, 230 x 460 V: 115/230 V, 240 x 480 V: 120/240 V
Product compatibility FSC2
Depth 5.61 in
Width 5.25 in
Electrical connection screw clamp terminals
Material copper: winding
Network number of phases 1 phase
Rated power in VA 500 VA per CE, 750 VA per NOM, 750 VA per CSA, 750 VA per UL
Temperature rise 115 °C
Height 4.51 in
Environment
Insulation temperature 180 °C
NEMA degree of protection not rated (open device)
Product certifications UL listed file E61239, CSA file LR37055 guide 184-N-90
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 17.780 cm
Package 1 Width 20.828 cm
Package 1 Length 22.352 cm
Package 1 Weight 8.106 kg
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 101.600 cm
Package 2 Width 101.600 cm
Package 2 Length 121.920 cm
Package 2 Weight 648.637 kg
