SKU:

9002AW117

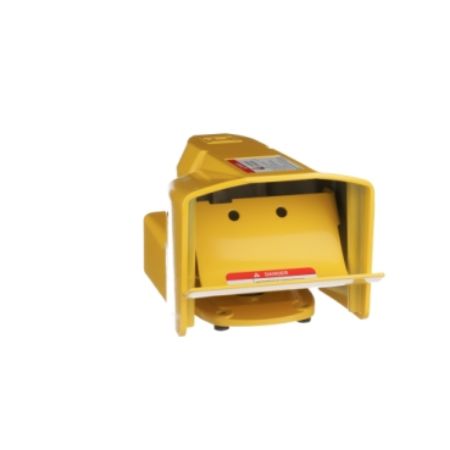

Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC

Old price: $1,394.80 INC GST
$1,087.94 INC GST
Available for Shipping : 25-Aug-2025
Foot Switch, Harmony 9002AW, industrial, oversized pedal and safety and side shields, SPDT contact, NEMA 4, 13, two stage, 5A at 600V AC
  • This industrial switch is part of the 9002 Heavy Duty Industrial Foot Switch product range
  • It has single pole double throw operation with a spring return with mechanical latch
  • The safety door interlocks with the pedal to prevent operation from shock or vibration
  • Fully shielded with oversized pedal shield, side shields, and heavy duty cast metal provide a robust design
  • It complies with UL and CSA standards and is NEMA 2, 4, and 13 rated
  • Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Be the first to review this product
Manufacturer: Square D
Environmental Disclosure
Instruction sheet
Product Page Link
Product Data Sheet
9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has an oversized pedal shield, side shields and a safety door. The single pole double throw snap switch used for the foot switch contact is rated at 5A resistive at 600 VAC. For other contact ratings, refer to the catalog. Snap switch contains two double break contact elements (1 N.O. and 1 N.C.) that must be used on circuits of same polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is 6.26 inches tall, 6.40 inches wide and 8.56 inches deep. Foot switch is UL listed and CSA certified.

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 600 V AC/DC
Device composition side shield, safety door, oversized pedal shield
Depth 217 mm
Width 163 mm
Cable entry 0.75 inch NPT conduit entrance
Switch function SPDT
Contact operation 1 step
NEMA degree of protection NEMA 2/4/13
Product or component type foot switch
Type of operator spring return
Range of product 9002AW
Height 159 mm
Product certifications CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.510 cm
Package 1 Width 17.272 cm
Package 1 Length 28.702 cm
Package 1 Weight 5.194 kg
Unit Type of Package 2 2
Number of Units in Package 2 36
Package 2 Height 101.600 cm
Package 2 Width 101.600 cm
Package 2 Length 121.920 cm
Package 2 Weight 188.694 kg
