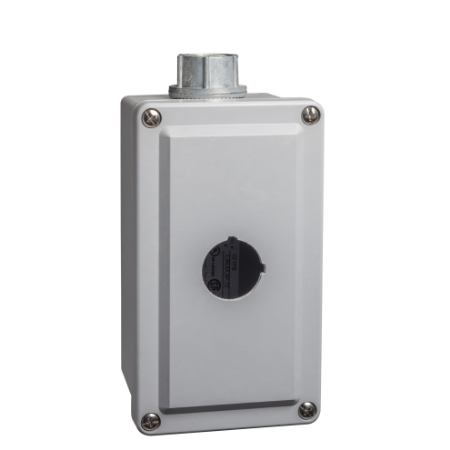

Picture of Empty enclosure control station, Harmony 9001K, Harmony 9001SK, plastic, 1 cut out, 30mm, for 3 4 cable entry
Picture of Empty enclosure control station, Harmony 9001K, Harmony 9001SK, plastic, 1 cut out, 30mm, for 3 4 cable entry
Picture of Empty enclosure control station, Harmony 9001K, Harmony 9001SK, plastic, 1 cut out, 30mm, for 3 4 cable entry
Picture of Empty enclosure control station, Harmony 9001K, Harmony 9001SK, plastic, 1 cut out, 30mm, for 3 4 cable entry
Picture of Empty enclosure control station, Harmony 9001K, Harmony 9001SK, plastic, 1 cut out, 30mm, for 3 4 cable entry
Picture of Empty enclosure control station, Harmony 9001K, Harmony 9001SK, plastic, 1 cut out, 30mm, for 3 4 cable entry
Picture of Empty enclosure control station, Harmony 9001K, Harmony 9001SK, plastic, 1 cut out, 30mm, for 3 4 cable entry
Picture of Empty enclosure control station, Harmony 9001K, Harmony 9001SK, plastic, 1 cut out, 30mm, for 3 4 cable entry
SKU:

9001SKY1

Empty enclosure control station, Harmony 9001K, Harmony 9001SK, plastic, 1 cut out, 30mm, for 3 4 cable entry

Old price: $311.30 INC GST
$242.81 INC GST
Available for Shipping : 01-Sep-2025
Empty enclosure control station, Harmony 9001K, Harmony 9001SK, plastic, 1 cut out, 30mm, for 3 4 cable entry
Be the first to review this product
Manufacturer: Square D
Product environmental
Catalogue
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This empty enclosure is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It comprises a plastic enclosure with 1 vertical opening diameter 30mm. It is supplied with 1 entry tapped for 3/4'' knockout. This robust control station complies with the requirements of NEMA 1/13/3/4/4X ratings. It weighs 690g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001SK
Number of cut-out 1 cut-out
Product or component type empty enclosure
Cable entry 1 entry tapped for 3/4'' knockout
Range of product Harmony 9001K, Harmony 9001SK
Complementary
Compatibility code 9001SK
Net weight 0.69 kg
Material plastic
Product destination for Ø 30 mm control and signalling units
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 4, NEMA 3, NEMA 12, NEMA 1
Overvoltage category II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.5 cm
Package 1 Width 20.5 cm
Package 1 Length 12.0 cm
Package 1 Weight 810.0 g
Unit Type of Package 2 2
Number of Units in Package 2 6
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.0 kg
