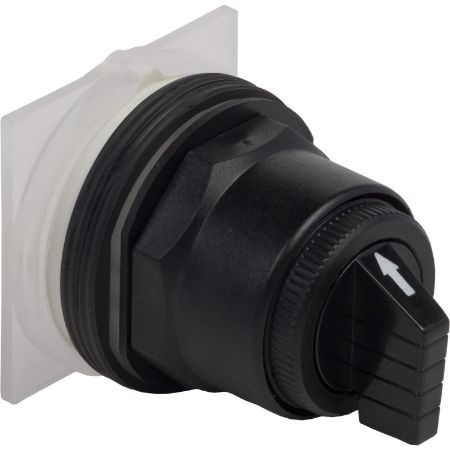

Picture of Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, spring return right to center
SKU:

9001SKS73B

Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, spring return right to center

Old price: $168.96 INC GST
$131.79 INC GST
Available for Shipping : 12-Aug-2025
Product Selector
Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 3 positions, spring return right to center
Be the first to review this product
Manufacturer: Square D
CAD
Environmental Disclosure
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony 9001SK, black selector switch with C cam has 3 positions, operates with spring return from right to center position mechanism. It has a double insulated plastic bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Products specifications

Attribute name Attribute value
Main
Device short name K
Product or component type head for selector switch
Mounting diameter 30 mm
Enclosure type dust and oil resistant weatherproof enclosure for indoor/outdoor
Range of product Harmony 9001SK
Complementary
Type of operator spring return, spring return right to centre
Operator position information 3 positions
Bezel material plastic
Operator profile 1 projecting push-button, standard handle
Size 30 mm
Cap/operator or lens colour black
Contacts type and composition without contact block
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
Product certifications UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.355 cm
Package 1 Width 7.62 cm
Package 1 Length 49.161 cm
Package 1 Weight 58.967 g
