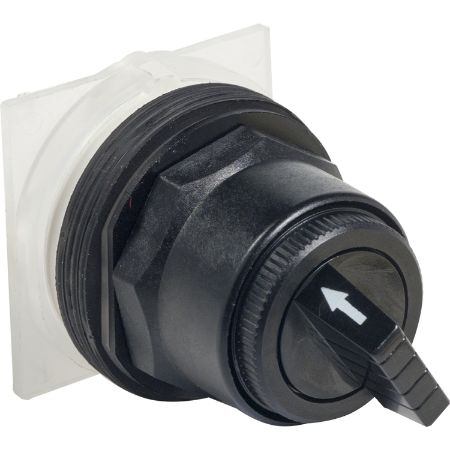

Picture of Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 2 positions, spring return right to left
SKU:

9001SKS34B

Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 2 positions, spring return right to left

Old price: $142.12 INC GST
$110.85 INC GST
Available for Shipping : 24-Aug-2025
Selector switch head, Harmony 9001SK, plastic, standard handle, black, 30mm, 2 positions, spring return right to left
Be the first to review this product
Manufacturer: Square D
CAD
Environmental Disclosure
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This selector switch 2 position provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)

Products specifications

Attribute name Attribute value
Main
Device short name 9001SK
Product or component type head for selector switch
Range of product Harmony 9001SK
Complementary
Return right to left
Type of operator spring return
Compatibility code 9001SK
Operator position information 2 positions
Bezel material plastic
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Cap/operator or lens colour black
Operator profile standard handle
Mounting diameter 30 mm
Cam profile 4
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
Product certifications UL listed file E42259 CCN NKCR, CSA LR24590 class 3211 03, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.355 cm
Package 1 Width 7.62 cm
Package 1 Length 49.161 cm
Package 1 Weight 63.503 g
