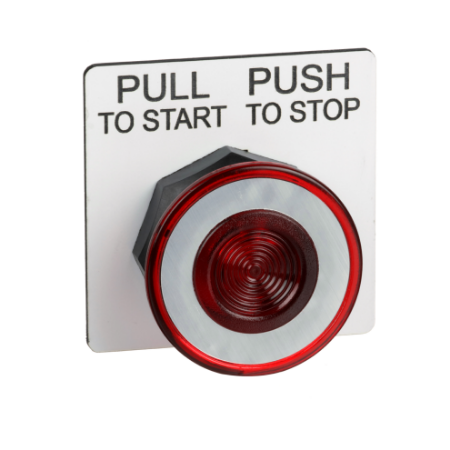

Picture of Push button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull
SKU:

9001SKR9R

Push button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull

Old price: $240.35 INC GST
$187.47 INC GST
Availability: Please contact our sales team on 1300 724 622.
Push button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Instruction sheet
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
This red mushroom head for push-button is a separate component of the range of control and signaling units, Harmony 9001SK diameter 30mm. It has a double insulated bezel. It is supplied with a red mushroom diameter 41 mm, unmarked Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It features push pull operation. Its protection index is IP66. It weighs 95g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001SK
Product or component type head for push-button
Range of product Harmony 9001SK
Complementary
CAD overall depth 69 mm
CAD overall width 46 mm
Operating position any position
Type of operator push-pull,  maintained
Compatibility code 9001SK
Mechanical durability 5000000 cycles
Operator position information 2 positions
Operator profile mushroom Ø 41 mm, unmarked, mushroom Ø 41 mm
Bezel material plastic
Contacts type and composition without contact block
CAD overall height 45 mm
Size 30 mm
Net weight 0.095 kg
Cap/operator or lens colour red
Shape of signaling unit head round
Mounting diameter 30 mm
Operator additional information screw-on plastic
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 4X, NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Ambient air temperature for storage -40-70 °C
Standards UL 508, JIS C 852, JIS C 4520, EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C
Product certifications UL listed file E78403 CCN NKCR, CSA LR25490 class 3211 03, NEMA, UL 508
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.842 cm
Package 1 Width 5.08 cm
Package 1 Length 9.398 cm
Package 1 Weight 58.967 g
