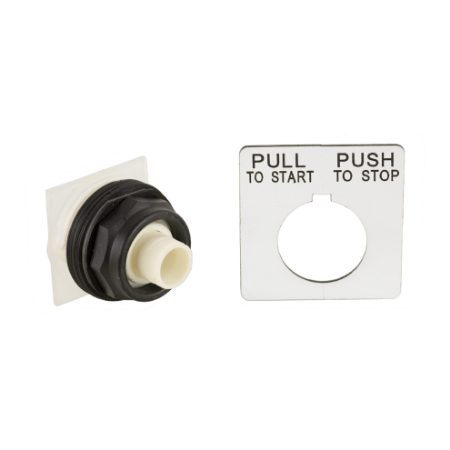

Picture of Push button head, Harmony 9001SK, plastic, without mushroom, 30mm, 2 positions, push-pull
SKU:

9001SKR9

Push button head, Harmony 9001SK, plastic, without mushroom, 30mm, 2 positions, push-pull

Old price: $213.18 INC GST
$166.28 INC GST
Available for Shipping : 24-Jul-2025
Push button head, Harmony 9001SK, plastic, without mushroom, 30mm, 2 positions, push-pull
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
Declaration of conformity
CAD
Product Page Link
Product Data Sheet
This head for push-button is a separate component of the range of control and signaling units, Harmony 9001SK diameter 30mm. It has a double insulated bezel. It is supplied without knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It features push pull operation. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001SK
Product or component type head for push-button
Range of product Harmony 9001SK
Complementary
Type of operator push-pull,  maintained
Operator position information 2 positions
NEMA degree of protection NEMA 1/2/3/3R/4/4X/6/12/13
Bezel material plastic
Light source without
Contacts type and composition without contact block
IP degree of protection IP64
Size 30 mm
Cap/operator or lens colour without mushroom
Shape of signaling unit head octagonal
Mounting diameter 30 mm
Light block supply without supply
Product certifications CSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR, CE
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.572 cm
Package 1 Width 5.334 cm
Package 1 Length 9.398 cm
Package 1 Weight 49.895 g
