SKU:

9001KS62

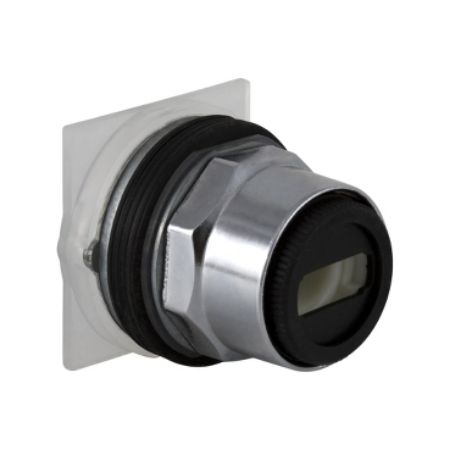

Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, spring return left to center

Old price: $168.96 INC GST

Price: $131.79 INC GST

Qty:

Available for Shipping : 31-Aug-2025

Selector switch head, Harmony 9001K, metal, without handle, 30mm, 3 positions, spring return left to center

Manufacturer: Square D

Declaration of conformity

Instruction sheet

CAD

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Device short name	9001KS
Product or component type	head for selector switch
Type of operator	left to centre spring return
Range of product	Harmony 9001K
Complementary
Return	left to centre
Type of operator	spring return
Mechanical durability	500000 cycles
Operator position information	3 positions
Bezel material	metal
Contacts type and composition	without contact block
Device presentation	basic element
Size	30 mm
Net weight	0.245 kg
Shape of signaling unit head	round
Operator profile	without handle
Mounting diameter	30 mm
Cam profile	2
Environment
Protective treatment	TC
NEMA degree of protection	NEMA 6, NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Overvoltage category	class II conforming to IEC 61140
Ambient air temperature for storage	-40-70 °C
IP degree of protection	IP66 conforming to IEC 60529
Vibration resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	50 gn conforming to IEC 60068-2-27
Standards	EN/IEC 60947-1, JIS C 4520, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C 852, UL 508
Ambient air temperature for operation	-25-70 °C
Product certifications	NEMA, UL 508
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	19.355 cm
Package 1 Width	7.62 cm
Package 1 Length	49.161 cm
Package 1 Weight	131.542 g
