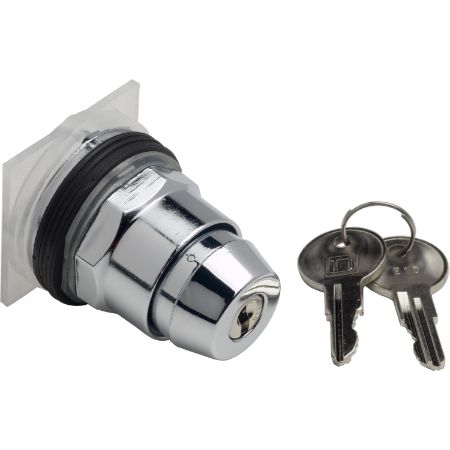

Picture of Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 3 positions, return both sides to center
Picture of Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 3 positions, return both sides to center
Picture of Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 3 positions, return both sides to center
SKU:

9001KS52K5

Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 3 positions, return both sides to center

Old price: $399.85 INC GST
$311.88 INC GST
Available for Shipping : 02-Sep-2025
Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 3 positions, return both sides to center
Be the first to review this product
Manufacturer: Square D
CAD
Image of product in real life situation
Catalog
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This selector switch with key operated knob provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant, vibration resistant and oil resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)

Products specifications

Attribute name Attribute value
Main
Device short name K
Operator profile black key operated knob
Product or component type head for key selector switch
Type of operator spring return
Range of product Harmony 9001K
Complementary
Return both sides to centre
Type of operator spring return
Operator position information 3 positions
Bezel material metal
Contacts type and composition without contact block
Key withdrawal position center
Device presentation basic element
Size 30 mm
Operator profile key switch
Mounting diameter 30 mm
Cam profile 2
Key number E10
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CSA LR24590 class 3211 03, CE, UL listed file E42259 CCN NKCR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.3 cm
Package 1 Width 5.6 cm
Package 1 Length 9.4 cm
Package 1 Weight 195.0 g
