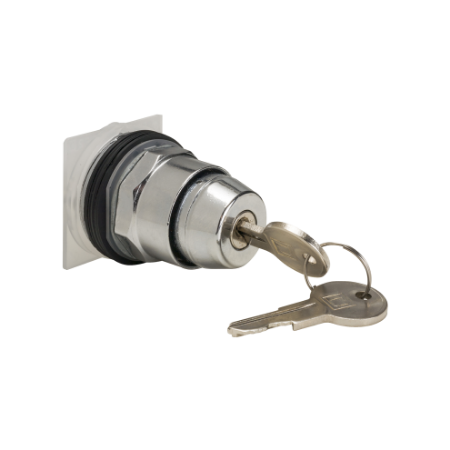

Picture of Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 2 positions, spring return right to left
SKU:

9001KS34K1

Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 2 positions, spring return right to left

Old price: $293.15 INC GST
$228.66 INC GST
Available for Shipping : 07-Sep-2025
Head for key selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 2 positions, spring return right to left
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
CAD
Instruction sheet
Product Page Link
Product Data Sheet
This key selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with black key operated knob. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions spring return operator and is supplied without contacts. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name K
Operator profile black key operated knob
Product or component type head for key selector switch
Type of operator spring return
Range of product Harmony 9001K
Complementary
Return right to left
Type of operator spring return
Operator position information 2 positions
Bezel material metal
Contacts type and composition without contact block
Key withdrawal position left
Device presentation basic element
Size 30 mm
Operator profile key switch
Mounting diameter 30 mm
Cam profile 4
Key number E10
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CSA LR24590 class 3211 03, CE, UL listed file E42259 CCN NKCR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.588 cm
Package 1 Width 4.826 cm
Package 1 Length 9.144 cm
Package 1 Weight 195.045 g

Related products

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1 CO

9001KA1
$69.33 INC GST $88.88 INC GST
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1NC

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, positive opening, 1NC

9001KA3
$49.85 INC GST $63.91 INC GST
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, standard, 1NO

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, standard, 1NO

9001KA2
$49.85 INC GST $63.91 INC GST
View Detail

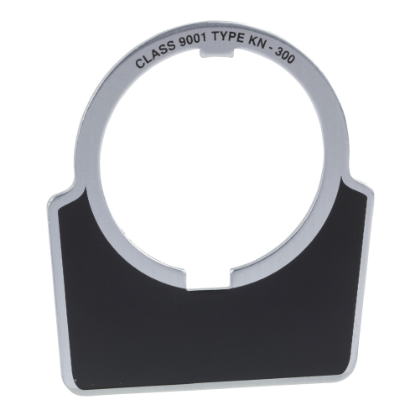

Blank legend, Harmony 9001K, Harmony 9001SK, 30mm, aluminium, black with silver letters, 44x50mm

9001KN300
$11.24 INC GST $14.41 INC GST
View Detail
Picture of Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0...600V, early make, 1 NO

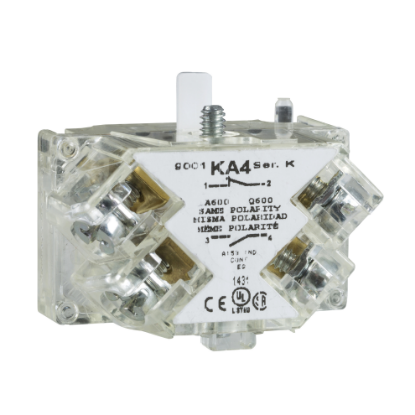

Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0...600V, early make, 1 NO

9001KA4
$63.84 INC GST $81.84 INC GST
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 CO

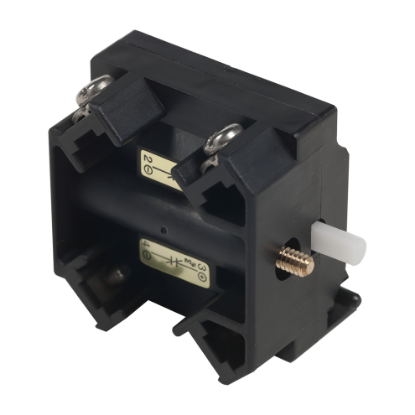

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 CO

9001KA41
$90.09 INC GST $115.50 INC GST
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, late break, 1NC

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 0...600V, silver alloy contacts, screw clamp terminal, late break, 1NC

9001KA5
$49.85 INC GST $63.91 INC GST
View Detail
Picture of Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1 CO

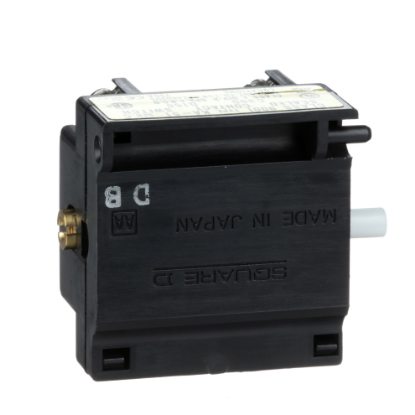

Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1 CO

9001KA51
$277.13 INC GST $355.30 INC GST
View Detail
