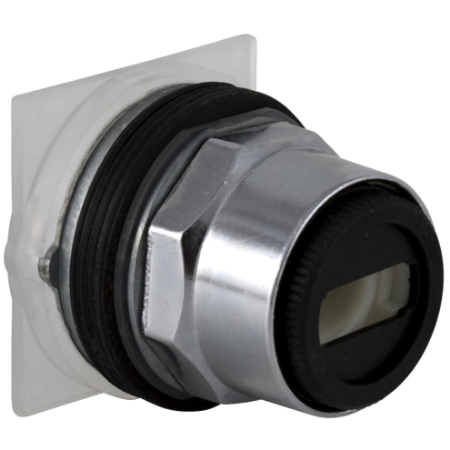

Picture of Head for selector switch, Harmony 9001K, metal, without handle, 30mm, 2 positions, stay put
SKU:

9001KS11

Head for selector switch, Harmony 9001K, metal, without handle, 30mm, 2 positions, stay put

Old price: $106.59 INC GST
$83.14 INC GST
Available for Shipping : 07-Sep-2025
Head for selector switch, Harmony 9001K, metal, without handle, 30mm, 2 positions, stay put
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Product environmental
Instruction sheet
CAD
Product Page Link
Product Data Sheet
This selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied without knob. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions operator and is supplied without contacts. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name K
Operator profile without cap without knob
Product or component type head for selector switch
Type of operator maintained
Range of product Harmony 9001K
Complementary
Type of operator stay put
Operator position information 2 positions
Bezel material metal
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Operator profile without handle
Mounting diameter 30 mm
Cam profile 5
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.112 cm
Package 1 Width 5.842 cm
Package 1 Length 5.334 cm
Package 1 Weight 122.47 g
