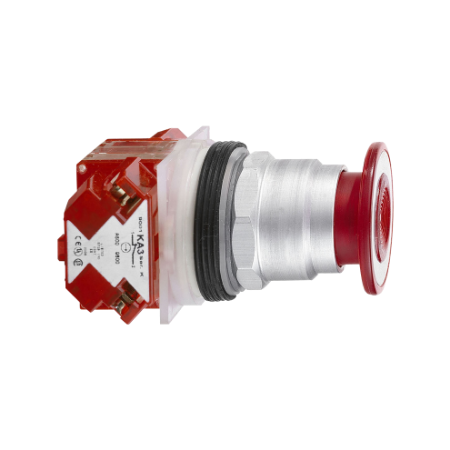

Picture of Push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 1NC
SKU:

9001KR9RH6

Push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 1NC

Old price: $409.20 INC GST
$319.18 INC GST
Available for Shipping : 24-Jul-2025
Product Selector
Push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Catalogue
Product environmental
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony 9001K, modular red push button has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, a round shape and 40mm mushroom head and 1 x NC contact. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile red mushroom Ø 41 mm, unmarked
Product or component type push-button
Type of operator push-pull
Range of product Harmony 9001K
Complementary
Shape of screw head cross slotted
CAD overall depth 74 mm
CAD overall width 54 mm
Tightening torque 0.8-0.8 N.m conforming to IEC 60947-1
Operating position any position
Type of operator push-pull
Compatibility code 9001K
Mechanical durability 5000000 cycles
Operator position information 2 positions
[Ie] rated operational current 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
Bezel material metal
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Contacts type and composition 1 NC
[Icm] rated short-circuit making capacity 0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 12 kA at 120 V AC-15, 7200 VA
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1
Device presentation complete product
CAD overall height 103 mm
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Size 30 mm
Net weight 0.141 kg
Head material plastic
Cap/operator or lens colour red
Shape of signaling unit head round
Rated breaking capacity 0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 1.5 kA at 480 V AC-15, 720 VA, 1.2 kA at 600 V AC-15, 720 VA, 6 kA at 120 V AC-15, 720 VA, 3 kA at 240 V AC-15, 720 VA
[Ith] conventional free air thermal current 10 A
Operator profile mushroom Ø 41 mm
Mounting diameter 30 mm
Positive opening with conforming to IEC 60947-5-2
Contacts material silver alloy contacts
Short-circuit protection 10 A cartridge fuse conforming to IEC 60947-5-1
Operator additional information screw-on plastic
Environment
Protective treatment TC
NEMA degree of protection NEMA 6, NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Standards CSA C22.2 No 14, UL 508, JIS C 852, JIS C 4520, IEC 60947-5-4, IEC 60947-1, IEC 60947-5-1
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Ambient air temperature for operation -25-70 °C
Product certifications UL 508, NEMA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 4.700 cm
Package 1 Length 9.200 cm
Package 1 Weight 141.000 g
Unit Type of Package 2 2
Number of Units in Package 2 16
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.258 kg
