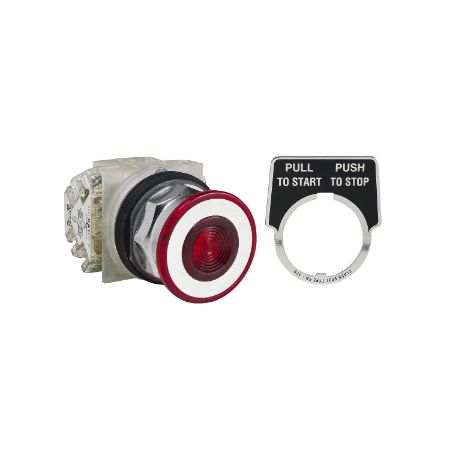

Picture of Push-button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, 2 C/O
SKU:

9001KR9RH2

Push-button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, 2 C/O

Old price: $650.10 INC GST
$507.08 INC GST
Available for Shipping : 24-Jul-2025
Push-button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, 2 C/O
Be the first to review this product
Manufacturer: Square D
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony 9001K product is a red mushroom head metal pushbutton. It has 2 positions operates with a push-pull mechanism, and is equipped with 2 C/O contacts. This pushbutton provides an ergonomic interface for your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. it features a 41mm diameter red mushroom head. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its NEMA 1/2/3/3R/4/6/12/13 ratings. It complies with NEMA, UL listed file E42259 CCN NKCR, CE, and CSA LR 25490 class 3211 03 certifications. A marked plastic legend (Pull to start. Push to stop) is supplied with this pushbutton. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.

Products specifications

Attribute name Attribute value
Main
Device short name K
Product or component type push-button
Range of product Harmony 9001K
Operator additional information screw-on plastic
Complementary
Type of operator push-pull
Operator position information 2 positions
Contact operation standard
[Ie] rated operational current 10 A, DC-13, 10 A, AC-15
Bezel material metal
Contacts type and composition 2 C/O
Device presentation complete product
Size 30 mm
Cap/operator or lens colour red
Operator profile mushroom Ø 41 mm
Mounting diameter 30 mm
Light block supply without supply
Light source without
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CSA LR 25490 class 3211 03, CE, UL listed file E42259 CCN NKCR, NEMA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.826 cm
Package 1 Width 5.588 cm
Package 1 Length 9.398 cm
Package 1 Weight 172.365 g

Related products

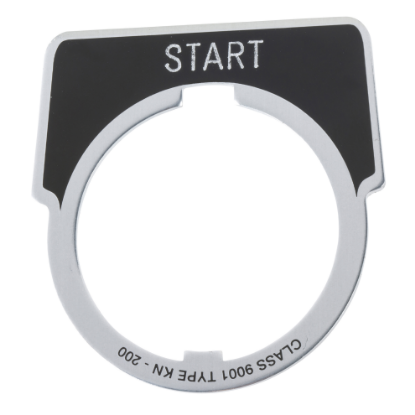

Picture of Marked legend, Harmony 9001K, Harmony 9001SK, 30mm, aluminium, black with silver letters, 40x43mm, marking START
