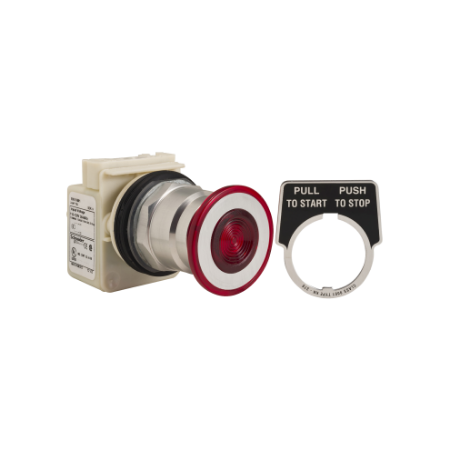

Picture of Head for spring return push button, Harmony 9001K, metal, red mushroom 41mm, 30mm, 3 positions, 110...120V
SKU:

9001KR8P1R

Head for spring return push button, Harmony 9001K, metal, red mushroom 41mm, 30mm, 3 positions, 110...120V

Old price: $345.95 INC GST
$269.84 INC GST
Available for Shipping : 07-Sep-2025
Product Selector
Head for spring return push button, Harmony 9001K, metal, red mushroom 41mm, 30mm, 3 positions, 110...120V
Be the first to review this product
Manufacturer: Schneider Electric
CAD
Instruction sheet
Declaration of conformity
Product environmental
Product Page Link
Product Data Sheet
This Harmony 9001K, modular illuminated red push button with screw-in head operates with spring return mechanism. It has a chromium-plated metal bezel and is supplied with 110V AC integral LED, it has 40mm mushroom head. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile flush
Product or component type head for illuminated push-button
Range of product Harmony 9001K
Operator additional information screw-on plastic
Complementary
Type of operator pull : spring return, center : stay put, push : spring return, spring return
Compatibility code 9001K
Operator position information 3 positions
Bezel material metal
Contacts type and composition without contact block
Cap/operator or lens colour red
Shape of signaling unit head round
Operator profile mushroom Ø 41 mm
Light block supply via integral transformer
Mounting diameter 30 mm
[Us] rated supply voltage 110...120 V
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.588 cm
Package 1 Width 4.572 cm
Package 1 Length 9.398 cm
Package 1 Weight 208.653 g
