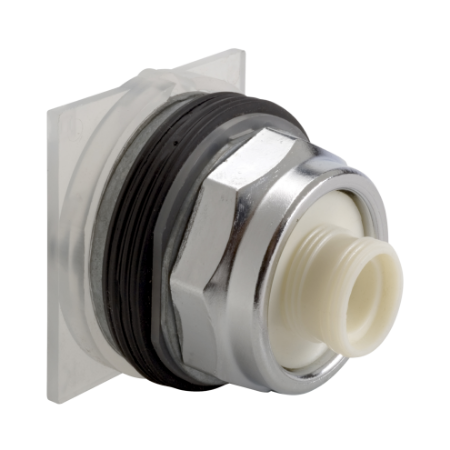

Picture of Push-button head, Harmony 9001K, metal, without mushroom, 30mm, spring return
SKU:

9001KR20

Push-button head, Harmony 9001K, metal, without mushroom, 30mm, spring return

Old price: $95.81 INC GST
$74.73 INC GST
Available for Shipping : 25-Aug-2025
Push-button head, Harmony 9001K, metal, without mushroom, 30mm, spring return
Be the first to review this product
Manufacturer: Schneider Electric
Product environmental
Declaration of conformity
Instruction sheet
Product Page Link
Product Data Sheet
"This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This pushbutton head comes in a round shape without cap flush." "It operates with spring return mechanism, which makes switch automatically return to its original or rest position." "This pushbutton head is fitted with metal full guard." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile without cap flush
Product or component type head for push-button
Range of product Harmony 9001K
Complementary
Type of operator spring return
Compatibility code 9001K
Bezel material metal
Contacts type and composition without contact block
Cap/operator or lens colour without mushroom
Shape of signaling unit head round
Mounting diameter 30 mm
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.08 cm
Package 1 Width 5.842 cm
Package 1 Length 7.112 cm
Package 1 Weight 104.326 g
