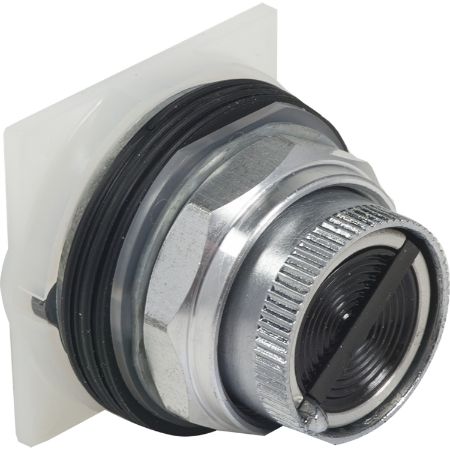

Picture of Push button switch, Harmony 9001K, metal, flush, black, 30mm, 2 positions, stay put
SKU:

9001KQ13B

Push button switch, Harmony 9001K, metal, flush, black, 30mm, 2 positions, stay put

Old price: $204.60 INC GST
$159.59 INC GST
Available for Shipping : 27-Aug-2025
Push button switch, Harmony 9001K, metal, flush, black, 30mm, 2 positions, stay put
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet
"This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This pushbutton operator has round screw head." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product meets EN 60947-5-1/A1 standard." "It is installed into a Ø 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Bezel material metal
Sale per indivisible quantity 1
Product or component type push-button switch
Mounting diameter 30 mm
Range of product Harmony 9001K
Complementary
Operator position information 2 positions
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 19.355 cm
Package 1 Width 7.62 cm
Package 1 Length 49.161 cm
Package 1 Weight 117.934 g
