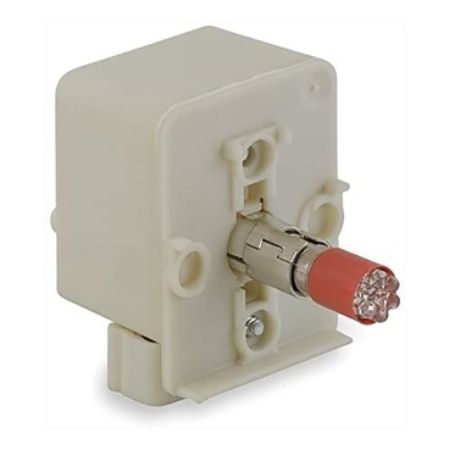

Picture of 30mm Push Button, Types K, SK or KX, light module, red LED lamp, 220/240 VAC 50/60 Hz
SKU:

9001KM7LR

30mm Push Button, Types K, SK or KX, light module, red LED lamp, 220/240 VAC 50/60 Hz

Old price: $293.15 INC GST
$228.66 INC GST
Available for Shipping : 16-Sep-2025
30mm Push Button, Types K, SK or KX, light module, red LED lamp, 220/240 VAC 50/60 Hz
Be the first to review this product
Manufacturer: Square D
Declaration of conformity
Instruction sheet
CAD
Product Page Link
Product Data Sheet
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This transformer light module is designed for 220/240 VAC 50/60 Hz circuits. Light modules have either an incandescent or an LED lamp. This light module has a red LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or red lens cap. These light modules are UL Listed and CSA certified.

Products specifications

Attribute name Attribute value
Main
Bulb base BA 9s
Device short name 9001K
Product or component type light block, light module
Range of product Harmony 9001SK, Harmony 9001K
Complementary
Light block colour red
Light source LED (bulb included)
Environment
Protective treatment TC
Standards JIS C 852, JIS C 4520, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508
Ambient air temperature for storage -40-158 °F, -40-70 °C
Ambient air temperature for operation -13-158 °F, -25-70 °C
Product certifications NEMA, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.903 cm
Package 1 Width 5.08 cm
Package 1 Length 32.774 cm
Package 1 Weight 113.398 g
