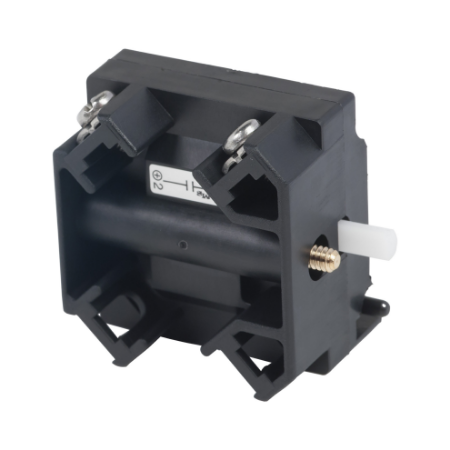

Picture of Contact block, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 NO
SKU:

9001KA42

Contact block, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 NO

Old price: $74.69 INC GST
$58.26 INC GST
Available for Shipping : 19-Aug-2025
Contact block, Harmony 9001K, Harmony 9001SK, 120V, screw clamp terminal, logic reed, hermetically sealed, 1 NO
Be the first to review this product
Manufacturer: Square D
CAD
Catalogue
Product environmental
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
"This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This contact block is an accessory for Ø 30mm pushbutton." "It has 1 NC contact with the positive opening logic reed operation." "It is a contact block with a rated voltage of 600V AC and a conventional free air thermal current 10A." "Its clear color of cover allows users to identify it visually at a distance. It is furnished with screw clamp terminals." "The contacts are made of silver alloy." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by NEMA and UL 508. It meets EN/IEC 60947-5-4 JIS C 852, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1 and JIS C 4520 standards." "This product is compatible with Harmony 9001K pushbuttons and switches." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Product or component type contact block
Range of product Harmony 9001SK, Harmony 9001K
Complementary
Shape of screw head cross slotted
Tightening torque 0.8-0.8 N.m conforming to IEC 60947-1
Compatibility code 9001K
Contact operation hermetically sealed, logic reed
[Ie] rated operational current 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA, 3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Contacts type and composition 1 NO
[Icm] rated short-circuit making capacity 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 0.55 kA at 125 V DC-13, 60 kA at 120 V AC-15, 7200 VA, 30 kA at 240 V AC-15, 7200 VA, 15 kA at 480 V AC-15, 7200 VA, 12 kA at 600 V AC-15, 7200 VA
Connections - terminals screw clamp terminals, 1 x 0.22...2 x 2.5 mm² conforming to IEC 60947-1, screw-clamp terminals
[Uimp] rated impulse withstand voltage 2.5 kV conforming to IEC 60947-1
Net weight 0.045 kg
Rated breaking capacity 0.55 kA at 125 V DC-13, 0.27 kA at 250 V DC-13, 0.1 kA at 600 V DC-13, 1.5 kA at 480 V AC-15, 720 VA, 1.2 kA at 600 V AC-15, 720 VA, 6 kA at 120 V AC-15, 720 VA, 3 kA at 240 V AC-15, 720 VA
[Ith] conventional free air thermal current 10 A
Positive opening with conforming to IEC 60947-5-2
Short-circuit protection 10 A cartridge fuse conforming to IEC 60947-5-1
Contacts usage hermetically sealed contacts
[Us] rated supply voltage 120 V
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards UL 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, UL 508, EN/IEC 60947-1, JIS C 852, EN/IEC 60947-5-1, CSA C22.2 No 14
Ambient air temperature for operation -25-70 °C
Product certifications UL 508, NEMA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 4.3 cm
Package 1 Length 4.8 cm
Package 1 Weight 36.3 g
Unit Type of Package 2 2
Number of Units in Package 2 9
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 585 g
