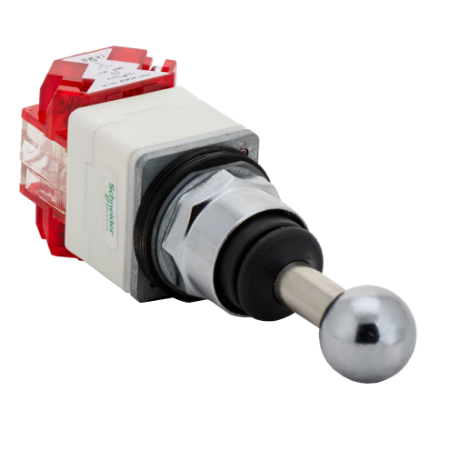

Picture of Head for joystick controller, Harmony 9001K, metal, 30mm, 2 directions, stay put
SKU:

9001K73

Head for joystick controller, Harmony 9001K, metal, 30mm, 2 directions, stay put

Old price: $498.30 INC GST
$388.67 INC GST
Available for Shipping : 19-Aug-2025
Head for joystick controller, Harmony 9001K, metal, 30mm, 2 directions, stay put
Be the first to review this product
Manufacturer: Schneider Electric
End of life manual
Catalogue
Declaration of conformity
CAD
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony 9001K73 is a joystick controller, 3 positions stay put, without contact. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile 80 mm long operating shaft
Sale per indivisible quantity 1
Product or component type head for joystick controller
Type of operator stay put
Range of product Harmony 9001K
Complementary
Operating position any position
Type of operator stay put
Compatibility code 9001K
Bezel material metal
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Net weight 0.372 kg
Operator direction information 2 directions
Shape of signaling unit head octagonal
Mounting diameter 30 mm
Environment
Protective treatment TC
NEMA degree of protection NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Overvoltage category II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-4, JIS C 852, CSA C22.2 No 14, IEC 60947-1, UL 508, IEC 60947-5-1, JIS C8201-5-1
Ambient air temperature for operation -25-70 °C
Product certifications UL 508, NEMA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.1 cm
Package 1 Width 5.1 cm
Package 1 Length 13.3 cm
Package 1 Weight 240.0 g
