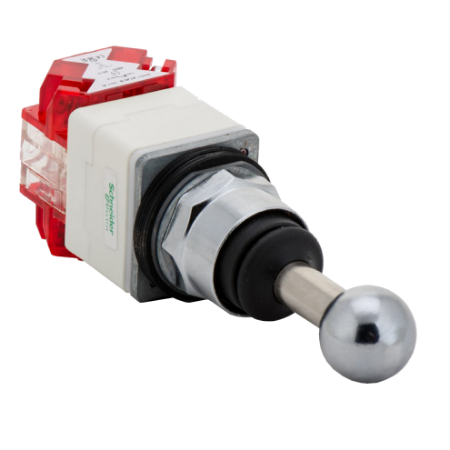

Picture of Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return with latch to center
SKU:

9001K34

Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return with latch to center

Old price: $849.20 INC GST
$662.38 INC GST
Available for Shipping : 07-Sep-2025
Head for joystick controller, Harmony 9001K, metal, 30mm, 4 directions, spring return with latch to center
Be the first to review this product
Manufacturer: Schneider Electric
CAD
End of life manual
Catalogue
Declaration of conformity
Product environmental
Instruction sheet
Product Page Link
Product Data Sheet
This joystick controller is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights. It features a 80mm long operator shaft and 5 positions spring return with latch. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-out. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Products specifications

Attribute name Attribute value
Main
Device short name 9001K
Operator profile 80 mm long operating shaft
Sale per indivisible quantity 1
Product or component type head for joystick controller
Type of operator spring return with latch
Range of product Harmony 9001K
Complementary
Return to centre
Operating position any position
Type of operator spring return with latch
Compatibility code 9001K
Bezel material metal
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Net weight 0.372 kg
Operator direction information 4 directions
Shape of signaling unit head octagonal
Mounting diameter 30 mm
Environment
Protective treatment TC
NEMA degree of protection NEMA 4, NEMA 3R, NEMA 3, NEMA 2, NEMA 13, NEMA 12, NEMA 1
Overvoltage category II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, IEC 60947-1, JIS C 852, JIS C8201-5-1, IEC 60947-5-4, UL 508, IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Product certifications UL 508, NEMA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.064 cm
Package 1 Width 5.08 cm
Package 1 Length 13.208 cm
Package 1 Weight 244.94 g
