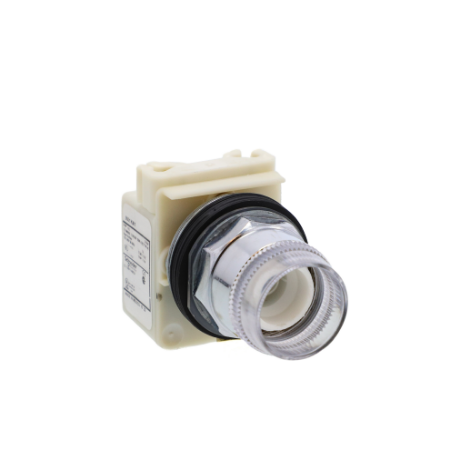

Picture of Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V
Picture of Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V
Picture of Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V
Picture of Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V
Picture of Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V
Picture of Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V
SKU:

9001K1L1

Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V

Old price: $352.55 INC GST
$274.99 INC GST
Available for Shipping : 07-Sep-2025
Illuminated push button, Harmony 9001K, metal, plastic guard flush, without cap, 30mm, spring return, 110...120V
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Product environmental
CAD
Declaration of conformity
Product Page Link
Product Data Sheet
This illuminated push-button with transformer and full plastic guard provides an ergonomic and visual interface for controlling your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)

Products specifications

Attribute name Attribute value
Main
Device short name K
Product or component type head for illuminated push-button
Range of product Harmony 9001K
Operator additional information plastic guard
Complementary
Bulb base BA 9s
Supply frequency 50...60 Hz
Type of operator spring return
[Ie] rated operational current 10 A, DC-13, 10 A, AC-15
Bezel material metal
Contacts type and composition without contact block
Device presentation basic element
Size 30 mm
Cap/operator or lens colour without cap
Operator profile flush
Light block supply via integral transformer, via transformer
Mounting diameter 30 mm
Light source incandescent bulb
[Us] rated supply voltage 110...120 V
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications CE, UL listed file E42259 CCN NKCR, NEMA, CSA LR 25490 class 3211 03
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.572 cm
Package 1 Width 5.334 cm
Package 1 Length 9.144 cm
Package 1 Weight 235.868 g
