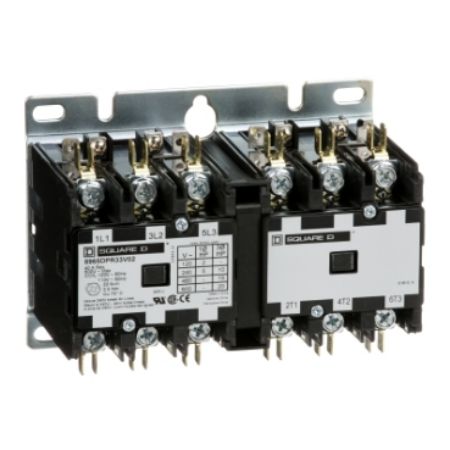

Picture of Reversing Hoist Contactor, 30 A, 3P, 110/120 VAC 50/60 Hz coil, open style
SKU:

8965DPR33V02

Reversing Hoist Contactor, 30 A, 3P, 110/120 VAC 50/60 Hz coil, open style

Old price: $1,199.00 INC GST
$755.37 INC GST
Available for Shipping : 28-Oct-2025
Reversing Hoist Contactor, 30 A, 3P, 110/120 VAC 50/60 Hz coil, open style
  • Type DPR reversing/hoist contactors are designed for the control of motors
  • Field-installable auxiliary contacts for flexibility
  • Conforms to the electrical characteristics stated in the data sheet per the Underwriters Laboratories (UL)
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Product Page Link
Product Data Sheet
8965 reversing hoist contactors are designed for control of hoists, overhead doors, small elevators and commercial laundry equipment. They are rated to perform in the short periods of jogging experienced in hoist service. This 3 pole contactor has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. Has ratings of 10 HP at 230 HP and 15 HP at 460 VAC and 575 VAC poly phase. The replaceable coil is available with a variety of coil voltages. This device has a 110/240 VAC 50/60 Hz coil. This reversing contactor doesn't have an enclosure. Reversing contactor is 3.98 inches tall, 5.87 inches wide and 3.07 inches deep. Auxiliary contacts are available for these contactors. 8965DPR reversing hoist contactors are UL component recognized and CSA certified.

Products specifications

Attribute name Attribute value
Main
[In] rated current 30 A
Product or component type Reversing Hoist Contactor
Motor power hp 15-15 hp at 575 V AC, 3 phases, 15-15 hp at 460 V AC, 3 phases, 10-10 hp at 230 V AC, 3 phases, 5-5 hp at 230 V AC, 1 phase, 2-2 hp at 115 V AC, 1 phase
Complementary
[Ue] rated operational voltage 600 V AC
Poles description 3P
Network number of phases 3 phases
Range of product DPR
[Uc] control circuit voltage 120 V AC at 60 Hz, 110 V AC at 50 Hz
Product certifications CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 12.7 cm
Package 1 Width 12.7 cm
Package 1 Length 16.51 cm
Package 1 Weight 1.089 kg
