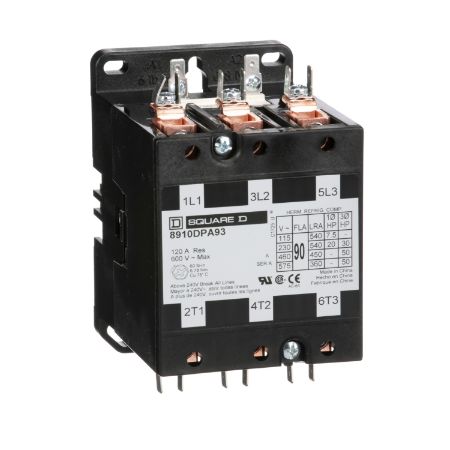

Picture of Contactor, Definite Purpose, 90A, 3 pole, 50HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open
SKU:

8910DPA93V02

Contactor, Definite Purpose, 90A, 3 pole, 50HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open

Old price: $595.10 INC GST
$374.91 INC GST
Available for Shipping : 19-Aug-2025
Contactor, Definite Purpose, 90A, 3 pole, 50HP at 575VAC, 3 phase, 110/120VAC 50/60Hz coil, open
  • Protect electrical systems protection from damage caused by overloads and short circuits.
  • They have current ranging from 20A to 90A
  • Quick connect terminals and binder head screws for easy wiring
  • Compact design and exclusive DIN mounting option reduce installation costs
  • Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Product Page Link
Product Data Sheet
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 90 ampere and a resistive rating of 120 amperes. It also has a 7.5 HP at 115 VAC single phase, 20 HP at 230 VAC single phase and 30 HP at 230 VAC three phase, 50 HP at 460 VAC three phase and 50 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 5.20 inches by 3.39 inches and 4.76 tall. These contactors are UL component recognized and CSA certified.

Products specifications

Attribute name Attribute value
Main
[In] rated current 90 A
Poles description 3P
Pole contact composition 3 NO
Product or component type Definite Purpose Contactor
Range of product DPA
Complementary
[Ue] rated operational voltage 600 V AC
Depth 4.67 in
Width 86 mm, 3.39 in
Electrical connection box lugs, quick connect terminals
Net weight 3.7 lb(US), 1.68 kg
Network number of phases 3 phases
Motor power hp 50-50 hp at 575 V AC, 3 phases, 50-50 hp at 460 V AC, 3 phases, 30-30 hp at 230 V AC, 3 phases, 20-20 hp at 230 V AC, 1 phase, 7.5-7.5 hp at 115 V AC, 1 phase
Locked rotor rated current 360 A at 575 V AC, 450 A at 460 V AC, 540 A at 277 V AC
Height 134 mm, 5.26 in
[Uc] control circuit voltage 110 V AC at 50 Hz, 120 V AC at 60 Hz
Environment
Product certifications CSA, UL recognized
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 15.240 cm
Package 1 Width 14.224 cm
Package 1 Length 18.288 cm
Package 1 Weight 1.669 kg
