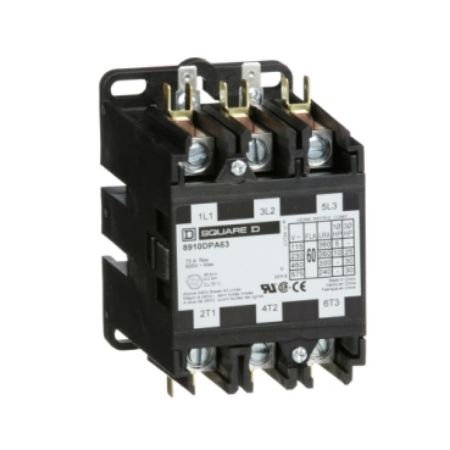

Picture of Contactor, Definite Purpose, 60A, 3 pole, 30HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open
SKU:

8910DPA63V09

Contactor, Definite Purpose, 60A, 3 pole, 30HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open

Old price: $460.35 INC GST
$290.02 INC GST
Available for Shipping : 19-Aug-2025
Contactor, Definite Purpose, 60A, 3 pole, 30HP at 575VAC, 3 phase, 208/240VAC 60Hz 220VAC 50Hz coil, open
  • Protect electrical systems protection from damage caused by overloads and short circuits.
  • They have current ranging from 20A to 90A
  • Quick connect terminals and binder head screws for easy wiring
  • Compact design and exclusive DIN mounting option reduce installation costs
  • Ideal for heating, air conditioning, refrigeration, data processing, and food service equipment
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Product Page Link
Product Data Sheet
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.

Products specifications

Attribute name Attribute value
Main
[In] rated current 60 A
Poles description 3P
Pole contact composition 3 NO
Product or component type Definite Purpose Contactor
Range of product DPA
Complementary
[Ue] rated operational voltage 600 V AC
Electrical connection quick connect terminals, box lugs
Network number of phases 3 phases
Motor power hp 25-25 hp at 230 V AC, 3 phases, 30-30 hp at 575 V AC, 3 phases, 30-30 hp at 460 V AC, 3 phases, 10-10 hp at 230 V AC, 1 phase, 5-5 hp at 115 V AC, 1 phase
Locked rotor rated current 240 A at 575 V AC, 300 A at 460 V AC, 360 A at 277 V AC
[Uc] control circuit voltage 220 V AC at 50 Hz, 208...240 V AC at 60 Hz
Environment
Product certifications CSA, UL recognized
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.478 cm
Package 1 Width 20.320 cm
Package 1 Length 22.860 cm
Package 1 Weight 5.566 kg
Unit Type of Package 2 2
Number of Units in Package 2 8
Package 2 Height 14.986 cm
Package 2 Width 21.082 cm
Package 2 Length 22.860 cm
Package 2 Weight 5.969 kg
