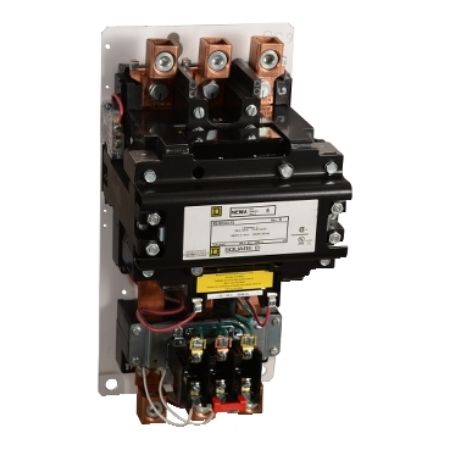

Picture of NEMA motor starter, Type S, nonreversing, Size 5, 270A, 200HP at 460VAC, 10kA SSCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open
SKU:

8536SGO1V02S

NEMA motor starter, Type S, nonreversing, Size 5, 270A, 200HP at 460VAC, 10kA SSCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open

Old price: $2,499.20 INC GST
$1,574.50 INC GST
Available for Shipping : 02-Sep-2025
NEMA motor starter, Type S, nonreversing, Size 5, 270A, 200HP at 460VAC, 10kA SSCR, 3 phase, 3 pole, melting alloy, 120VAC coil, open
  • Flexible with four overload relays types
  • Customizable with hundreds of combinations
  • Streamline installation, wiring, maintenance and field modifications
  • Reliable build for long mechanical life and electrical endurance
  • Ideal for use in construction, industrial markets, building automation
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Product Page Link
Product Data Sheet
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 5 non-reversing starter has a 270 ampere rating. This NEMA Size 5 motor starter has 3 phase ratings of 75 HP at 200 VAC, 100 HP at 230 VAC and 200 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 10 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 17.56 inches tall, 8.56 inches wide and 8.75 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Products specifications

Attribute name Attribute value
Main
Motor starter type non reversing
Product or component type motor starter
Range of product S
Complementary
[Ue] rated operational voltage 600 V AC
Depth 222.25 mm
Width 217.42 mm
Control circuit separate control circuit
[In] rated current 270 A
Electrical connection screw clamp terminals
Poles description 3P
Local signalling without pilot light
Network number of phases 3 phases
Control type no control units
Rated power in HP 200 HP at 575 V AC, 200 HP at 460 V AC, 100 HP at 230 V AC, 75 HP at 200 V AC
[Uc] control circuit voltage 120 V AC 60 Hz, 110 V AC 50 Hz
NEMA size 5
Auxiliary contact composition without
Height 446.02 mm
Thermal overload type melting alloy 3 Thermal Units
Environment
NEMA degree of protection not rated (open device)
Product certifications NEMA, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 26.162 cm
Package 1 Width 27.940 cm
Package 1 Length 50.292 cm
Package 1 Weight 25.356 kg
Unit Type of Package 2 2
Number of Units in Package 2 24
Package 2 Height 101.600 cm
Package 2 Width 101.600 cm
Package 2 Length 121.920 cm
Package 2 Weight 608.720 kg
