SKU:

8501XO40V02

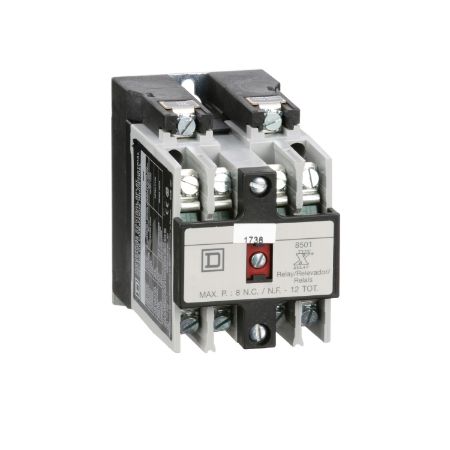

Relay, Harmony 8501X, machine tool, coil, screw clamp terminals, 10A resistive at 600V AC, 110/120V AC 50/60Hz, 4NO

Old price: $418.55 INC GST
$397.62 INC GST
Available for Shipping : 07-Sep-2025
Relay, Harmony 8501X, machine tool, coil, screw clamp terminals, 10A resistive at 600V AC, 110/120V AC 50/60Hz, 4NO
Be the first to review this product
Manufacturer: Square D
Environmental Disclosure
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has four 8501XC1 contact cartridges. This relay has four normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The four plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.

Products specifications

Attribute name Attribute value
Main
Relay type control
Product or component type relay
Range of product 8501X
[In] rated current 5 A DC, 10 A AC
Complementary
Depth 3.95 in
Tightening torque control circuit: 1.02-1.36 N.m - on screw terminals
AWG gauge AWG 18...AWG 12 copper
Width 2.23 in
Operating time 16 ms - drop-out, 15 ms - pick-up
Electrical connection screw clamp terminals
Hold-in power consumption in VA 25-25 VA 50 Hz, 23-23 VA 60 Hz
[Icm] rated short-circuit making capacity 4 A at: 125 V DC for inductive load control circuit conforming to UL 508, 0.2 A at: 301...600 V DC for inductive load control circuit conforming to UL 508, 0.55 A at: 250 V DC for inductive load control circuit conforming to UL 508, 1.1 A at: 125 V DC for inductive load control circuit conforming to UL 508, 10 A at: <= 600 V AC for resistive load control circuit conforming to UL 508, 12 A at: 600 V AC for inductive load control circuit conforming to UL 508, 15 A at: 480 V AC for inductive load control circuit conforming to UL 508, 30 A at: 240 V AC for inductive load control circuit conforming to UL 508, 0.8 A at: 250 V DC for resistive load control circuit conforming to UL 508, 60 A at: 120 V AC for inductive load control circuit conforming to UL 508
Inrush power in VA 143-143 VA 50 Hz, 148-148 VA 60 Hz
Rated breaking capacity 4 A at 125 V DC for resistive control circuit conforming to UL 508, 0.2 A at 301...600 V DC for inductive control circuit conforming to UL 508, 0.55 A at 250 V DC for inductive control circuit conforming to UL 508, 1.1 A at 125 V DC for inductive control circuit conforming to UL 508, 10 A at <= 600 V AC for resistive control circuit conforming to UL 508, 1.2 A at 600 V AC for inductive control circuit conforming to UL 508, 1.5 A at 480 V AC for inductive control circuit conforming to UL 508, 3 A at 240 V AC for inductive control circuit conforming to UL 508, 0.8 A at 250 V DC for resistive control circuit conforming to UL 508, 6 A at 120 V AC for inductive control circuit conforming to UL 508
Contacts type and composition 4 NO 4 standard contact cartridges
Mounting support panel
Control circuit voltage limits operational: 0.85...1.1 Uc AC 50/60 Hz
Height 3.5 in
[Uc] control circuit voltage 120 V AC 60 Hz, 110 V AC 50 Hz
Environment
Ambient air temperature for operation -40-160 °F
Product certifications CSA LR60905 class 3211 03, UL listed file E78403 CCN NKCR
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
