SKU:

8501RSD34V53

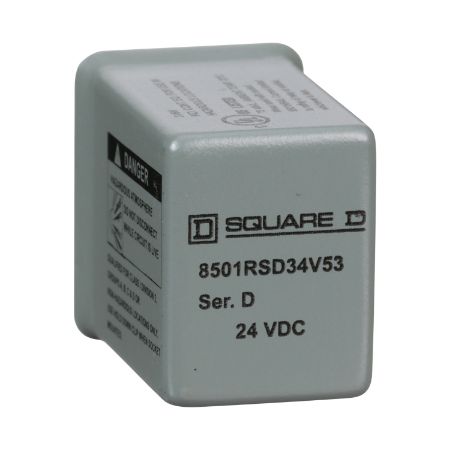

Miniature Relay, Harmony 8501R, low voltage, hermetically, 4PDT, 14 blades, coil, 5A resistive at 240V AC, 24V DC, 4NO+ 4NC

Old price: $144.10 INC GST
$136.90 INC GST
Available for Shipping : 13-Aug-2025
Miniature Relay, Harmony 8501R, low voltage, hermetically, 4PDT, 14 blades, coil, 5A resistive at 240V AC, 24V DC, 4NO+ 4NC
Be the first to review this product
Manufacturer: Square D
Declaration of conformity
Product Page Link
Product Data Sheet
8501RS miniature plug in relays are designed for use in Class 1 Division 2 hazardous locations. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 5 ampere resistive rating at 240 VAC, at 120 VAC and at 30 VDC. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Products specifications

Attribute name Attribute value
Main
Relay type low voltage
Product or component type Miniature Relay
Range of product 8501R
Complementary
Product compatibility 8501NR45
Depth 38.9 mm
Width 23.1 mm
Operating time 20 ms - drop-out, 20 ms - pick-up
Switch function 4PDT
Local signalling no indicator
Control type without test button
Maximum switching voltage 240 V AC, 30 V DC
Rated breaking capacity 5 A at 30 V DC for resistive control circuit conforming to UL 508, 5 A at 240 V AC for resistive control circuit conforming to UL 508, 5 A at 120 V AC for resistive control circuit conforming to UL 508
Shape of pin spade
Rated power in HP not rated
Contacts material hermetically sealed silver tin oxide
Mounting support socket
Height 29.4 mm
[Uc] control circuit voltage 24 V DC
Environment
Ambient air temperature for operation -40-131 °F
Product certifications CE, CSA, UL recognized, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.302 cm
Package 1 Width 3.810 cm
Package 1 Length 5.334 cm
Package 1 Weight 36.287 g
