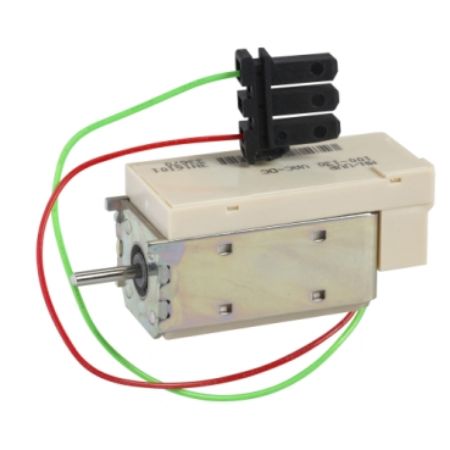

Standard opening voltage release MX, ComPacT NS630b/NS3200, fixed, 200/250V AC/DC, spare part

Old price: $548.90 INC GST
$439.12 INC GST
Available for Shipping : 24-Jul-2025
Standard opening voltage release MX, ComPacT NS630b/NS3200, fixed, 200/250V AC/DC, spare part
  • ComPacT NS is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 3200 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • New transparent front cover with visible auxiliaries
  • New toggle with ergonomic touch and optional LED blinking in trip position
  • Wireless auxiliary contact OF/SD in Zigbee
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Circularity Profile
User guide
Instruction sheet
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This is a MX shunt trip release for Compact NS 630b to Compact NS 3200 devices. Its rated voltage is 200VDC to 250VDC or 200VAC to 250VAC 50/60Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. Compact NS 630b to Compact NS 3200 device can be equipped with 1 MX or 1 MN auxiliary.

Products specifications

Attribute name Attribute value
Main
Device application control
Voltage release type instantaneous voltage release, opening coil
Range compatibility ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600
Device short name MX
Mounting mode fixed
Control type standard
Range ComPacT
Range of product ComPacT NS1600b...3200 new generation, ComPacT NS630b...1600 new generation
Product or component type voltage release
[Uc] control circuit voltage 200...250 V DC, 200...250 V AC 50/60 Hz
Complementary
Threshold tripping voltage 0.7...1.1 x Un opening
Accessory / separate part category spare part for ComPacT NS1600b...3200 new generation, spare part for ComPacT NS630b...1600 new generation, spare part for MasterPact NW, spare part for MasterPact NT
Supply holding power 4.5 VA
Response time 70 ms +/- 10 % for MasterPact NW, 55 ms +/- 10 % for MasterPact NT, 50 ms +/- 10 % for Compact NS1600b...3200, 50 ms +/- 10 % for Compact NS630b...1600
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.300 cm
Package 1 Width 6.000 cm
Package 1 Length 8.200 cm
Package 1 Weight 151.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 9.000 cm
Package 2 Width 13.200 cm
Package 2 Length 18.500 cm
Package 2 Weight 1.557 kg
Unit Type of Package 3 3
Number of Units in Package 3 120
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 18.640 kg
