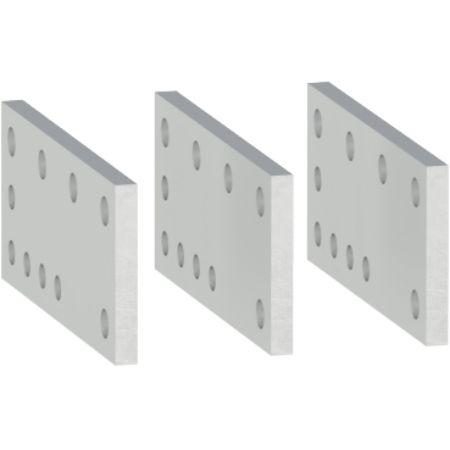

Picture of Cable lug adapters, MasterPacT NT, ComPacT NS630b to NS1600, connection up to 4 cables with lugs, set of 3 parts
Picture of Cable lug adapters, MasterPacT NT, ComPacT NS630b to NS1600, connection up to 4 cables with lugs, set of 3 parts
Picture of Cable lug adapters, MasterPacT NT, ComPacT NS630b to NS1600, connection up to 4 cables with lugs, set of 3 parts
SKU:

33644

Cable lug adapters, MasterPacT NT, ComPacT NS630b to NS1600, connection up to 4 cables with lugs, set of 3 parts

Old price: $674.30 INC GST
$552.93 INC GST
Available for Shipping : 24-Jul-2025
Cable lug adapters, MasterPacT NT, ComPacT NS630b to NS1600, connection up to 4 cables with lugs, set of 3 parts
  • ComPacT NS is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 3200 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • New transparent front cover with visible auxiliaries
  • New toggle with ergonomic touch and optional LED blinking in trip position
  • Wireless auxiliary contact OF/SD in Zigbee
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
User guide
Instruction sheet
Product Page Link
Product Data Sheet
These accessories are bare cable adapters for fixed and drawout ComPacT NS 630b to 1600 and MasterPact NT 06 to 16. They enable connection of one to four cables with crimp lugs up to 300mm². To ensure adequate mechanical strength, the connectors must be secured together with spacers. The rated current is up to 1600 A. They are sold by set of 3 parts.

Products specifications

Attribute name Attribute value
Main
Quantity per set set of 3
Poles description 3P
[In] rated current 1600-1600 A
Range MasterPacT
Product or component type cable lug adapter
Accessory / separate part category connection accessory
Range compatibility ComPact ComPact NS630b...1600, Masterpact MasterPact NT, ComPact Compact INV, ComPact ComPacT INS
Offer type C4
Range of product ComPact NS630b...1600
Complementary
Location of connection front, rear
Mounting mode fixed, drawout
Accessory / separate part category spare part for Compact NS630b...1600
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.7 cm
Package 1 Width 21 cm
Package 1 Length 26.5 cm
Package 1 Weight 4.21 kg
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 17.415 kg
Unit Type of Package 3 3
Number of Units in Package 3 32
Package 3 Height 45 cm
Package 3 Width 80 cm
Package 3 Length 120 cm
Package 3 Weight 159 kg
