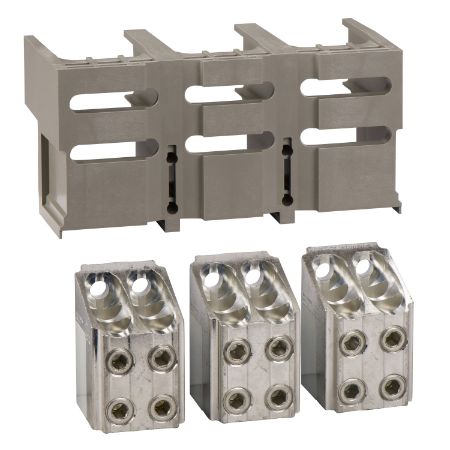

Picture of Set of bare cable connectors and terminal shield, ComPacT NS630b to NS1600, fixed, front connected, 240mm², 3 poles
SKU:

33640

Set of bare cable connectors and terminal shield, ComPacT NS630b to NS1600, fixed, front connected, 240mm², 3 poles

Old price: $991.10 INC GST
$812.70 INC GST
Available for Shipping : 11-Aug-2025
Set of bare cable connectors and terminal shield, ComPacT NS630b to NS1600, fixed, front connected, 240mm², 3 poles
  • ComPacT NS is a range of circuit breakers for built-in power & energy metering
  • The solution covers ratings from 630 A to 3200 A
  • MicroLogic electronic control unit provides electrical measurement and analysis functions
  • ComPacT NS offers an optimized range of auxiliaries and accessories, field installable
  • Flexible installation, in any position, in a switchboard or wall-mounted
  • New transparent front cover with visible auxiliaries
  • New toggle with ergonomic touch and optional LED blinking in trip position
  • Wireless auxiliary contact OF/SD in Zigbee
  • Sustainability with Green packaging and Green partnerships
  • Linked to Smart Panels, improves uptime with complete monitoring solution
Be the first to review this product
Manufacturer: Schneider Electric
Catalog
Instruction sheet
User guide
Product Page Link
Product Data Sheet
This accessory is a special set of bare cable connectors and terminal shield for 3 poles fixed front-connected Compact NSX 630b to 1600. The bare cable connectors can receive up to four 240mm² copper or aluminium cables. The terminal shield insulates power connection points. The rated current is up to and includes 1250 A. They are sold by set of 3 parts.

Products specifications

Attribute name Attribute value
Main
Device short name front bare cable connectors
Quantity per set set of 3
Poles description 3P
Range ComPacT
Product or component type bare cable connector
Accessory / separate part category connection accessory
Range compatibility ComPact ComPact NS630b...1600
Range of product ComPact NS630b...1600
Complementary
Mounting mode fixed
[In] rated current 1250-1250 A
Accessory / separate part category spare part for Compact NS630b...1600
Connections - terminals cable (connector) 4 cable(s) 240-240 mm²
Conductor material aluminium
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 14.500 cm
Package 1 Width 19.100 cm
Package 1 Length 29.500 cm
Package 1 Weight 1.723 kg
Unit Type of Package 2 2
Number of Units in Package 2 3
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 5.870 kg
Unit Type of Package 3 3
Number of Units in Package 3 12
Package 3 Height 45.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 34.678 kg
