Picture of Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 13 flush
SKU:

2601AF2

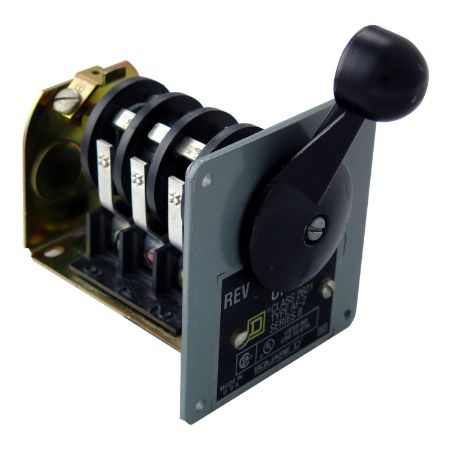

Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 13 flush

Old price: $215.38 INC GST
$135.69 INC GST
Available for Shipping : 21-Sep-2025
Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 13 flush
  • 600VAC and 250VDC maximum
  • Designed for motor rated up to 7.5hp
  • Contacts are not replaceable
  • Wide range of enclosures available
  • UL and CSA
Be the first to review this product
Manufacturer: Square D
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. The maximum operational voltage is 600 VAC and 250 VDC. This 3 pole drum switch is rated for 1.5 HP at 115 VAC, 2 HP at 230 VAC, single phase, 2 HP at 230 VAC, 2 HP at 575 VAC, three phase, and 0.25 HP up to 600 VDC. The binder head screw terminals will accept 18 to 10 AWG copper wire. This switch has no pilot light indicator. A variety of enclosures are available. This device has a NEMA 13 oiltight flush mounting enclosure. This drum switch is 5.20 inches tall, 3.38 inches wide and 5.58 inches deep. Drum switches are UL listed and CSA certified for global applications.

Products specifications

Attribute name Attribute value
Main
[Ue] rated operational voltage 250 V DC, 600 V AC
Product or component type Reversing Drum Switch
Poles description 3P
Motor power hp 0.25-0.25 hp at 230 V DC, 0.25-0.25 hp at 115 V DC, 2-2 hp at 575 V AC, 3 phases, 2-2 hp at 460 V AC, 3 phases, 2-2 hp at 230 V AC, 3 phases, 2-2 hp at 200 V AC, 3 phases, 2-2 hp at 230 V AC, 1 phase, 1.5-1.5 hp at 115 V AC, 1 phase
NEMA degree of protection NEMA 13
Complementary
Depth 5.58 in
Width 3.38 in
Electrical connection screw-clamp terminals
Range of product A
Height 5.20 in
Product certifications CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 13.97 cm
Package 1 Width 11.43 cm
Package 1 Length 17.78 cm
Package 1 Weight 708.058 g
