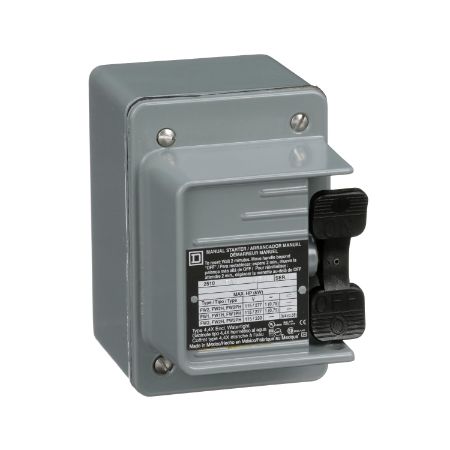

Picture of Manual starter, fractional horsepower, 16A, 2 poles, 1HP at 277VAC, no indicator, NEMA 4 enclosure, 1 conduit opening
SKU:

2510FW2

Manual starter, fractional horsepower, 16A, 2 poles, 1HP at 277VAC, no indicator, NEMA 4 enclosure, 1 conduit opening

Old price: $440.55 INC GST
$277.55 INC GST
Available for Shipping : 26-Aug-2025
Manual starter, fractional horsepower, 16A, 2 poles, 1HP at 277VAC, no indicator, NEMA 4 enclosure, 1 conduit opening
  • This two pole device is without a pilot light indicator
  • NEMA 4 enclosures are zinc alloy for indoor and outdoor applications
  • Typical applications include fans, conveyors, pumps and small machine tools
  • Units are UL Recognized and CSA Certified for global applications
Be the first to review this product
Manufacturer: Square D
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This manual starter is 4.38 inches tall, 3.00 inches wide and 4.25 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.

Products specifications

Attribute name Attribute value
Main
Product or component type Single Unit Manual Starter
Range of product F
Thermal overload type melting alloy
Complementary
[Ue] rated operational voltage 230 V DC, 277 V AC
Motor power hp 2 hp at 230 V AC, 0.75 hp at 230 V DC, 0.75 hp at 115 V DC, 1 hp at 277 V AC, 1 hp at 115 V AC
Depth 4.25 in
AWG gauge AWG 14...AWG 12 copper
Width 3 in
Local signalling no indicator
[In] rated current 16 A
Cable entry 0.75 NPT (bottom)
Electrical connection screw clamp terminals
Poles description 2P
Motor starter type non reversing
Control type toggle switch (with lock-off)
Network number of phases 1 phase
Height 4.38 in
Reset manual
Environment
NEMA degree of protection NEMA 4 die cast zinc alloy standard size
Product certifications CSA LR25490 class 3211 05, UL listed file E42243 CCN NLRV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.144 cm
Package 1 Width 11.684 cm
Package 1 Length 13.716 cm
Package 1 Weight 1.334 kg
