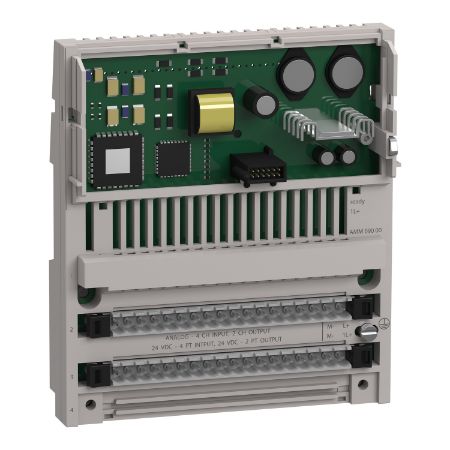

Picture of distributed analog/discrete I/O Modicon Momentum
Picture of distributed analog/discrete I/O Modicon Momentum
Picture of distributed analog/discrete I/O Modicon Momentum
Picture of distributed analog/discrete I/O Modicon Momentum
Picture of distributed analog/discrete I/O Modicon Momentum
Picture of distributed analog/discrete I/O Modicon Momentum
Picture of distributed analog/discrete I/O Modicon Momentum
Picture of distributed analog/discrete I/O Modicon Momentum
SKU:

170AMM09000

distributed analog/discrete I/O Modicon Momentum

$5,353.48 INC GST
Available for Shipping : 21-Aug-2025
distributed analog/discrete I/O Modicon Momentum
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
User guide
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This distributed analogue/discrete module has 1 group of 2 discrete outputs, 4 discrete inputs, 4 analogue differential inputs and 2 analogue output with positive discrete input logic. It is an analogue/discrete module with a rated supply voltage of 24V DC, a discrete output current of 1A per point, 2A per group, 2A per module and a maximum power dissipation of 6W. It is furnished with 2 connectors for removable terminal blocks. Analogue input range of this product is ±10V, ±20mA, ±5V, 1V to 5V, 4mA to 20mA and analogue output range is ±10V 12bit and 0mA to 20mA 12bit. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height) and weighs 0.24kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name Attribute value
Main
Analogue input type differential
Analogue input range 4...20 mA, 1...5 V, +/- 5 V, +/- 20 mA, +/- 10 V
Range of product Modicon Momentum automation platform
Group of channels 1 group of 2 analog outputs, 1 group of 4 analog differential inputs, 1 group of 4 discrete inputs, 1 group of 2 discrete outputs
Discrete output voltage <= 30 V
Output short-circuit protection with discrete output
Analogue output range 0...20 mA 12 bits, +/- 10 V 12 bits
Analogue input resolution 14 bits +/- 10 V, 13 bits +/- 5 V, 13 bits +/- 20 mA, 12 bits 4...20 mA, 12 bits 1...5 V
Product or component type analogue,discrete I/O base
Output overload protection with discrete output
Discrete input voltage 24 V DC
Complementary
Discrete input number 4 conforming to IEC 1131-2 Type 1
Common mode rejection > 54 dB analogue input circuit
Input overvoltage protection -30-30 V 24 V analogue input circuit, -50-50 V <= 100 s analogue input circuit
Discrete input logic positive
Maximum power dissipation in W 6 W
Current state 0 guaranteed <= 1.2 mA (discrete input)
Voltage state 0 guaranteed -3...5 V for discrete input
Discrete output current 2 A per module, 2 A per group, 1 A per point
Input voltage limits < 30 V
Marking CE
Response time 3.3 ms from state 1 to state 0 for discrete input, 2.2 ms from state 0 to state 1 for discrete input, < 0.1 ms from state 1 to state 0 for discrete output, < 0.1 ms from state 0 to state 1 for discrete output
[Us] rated supply voltage 24 VDC
Discrete output logic positive
Height 125 mm
Discrete output type transistor
Depth 47.5 mm
Width 141.5 mm
Conversion time 10 ms analogue input circuit, 1 ms analogue output
Local signalling 8 LEDs for channel status
Input resistance 4 kOhm discrete input, 1 MOhm analogue input circuit
Fail state for analogue input circuit: reset to zero, for analogue input circuit: hold
Isolation voltage 500 V (duration = 1 min) between operating voltage and I/O from ground, 500 V (duration = 1 min) between analogue I/O and operating voltage
Voltage state 1 guaranteed 11...30 V for discrete input
Maximum leakage current 1 mA DC 24 V discrete output
Net weight 0.24 kg
Current state 1 guaranteed >= 2.5 mA (discrete input)
Current consumption 200 mA at 24 V DC, <= 350 mA at 24 V DC
Conversion consistency +/- 0.04 % 4...20 mA analogue input circuit, +/- 0.04 % 1...5 V analogue input circuit, +/- 0.04 % +/- 5 V analogue input circuit, +/- 0.04 % +/- 20 mA analogue input circuit, +/- 0.02 % +/- 10 V analogue input circuit
Maximum voltage drop <0.5 V 1 A at state on discrete output
Conversion error 0,0016 1...5 V 25 °C analogue input circuit, 0,0016 +/- 5 V 25 °C analogue input circuit, 0,0016 +/- 20 mA 25 °C analogue input circuit, 0,0015 +/- 10 V 60 °C analogue input circuit, 0,0008 +/- 10 V 25 °C analogue input circuit, +/- 0.70 % 0...20 mA 60 °C analogue output, +/- 0.70 % +/- 10 V 60 °C analogue output, +/- 0.35 % 0...20 mA 25 °C analogue output, 0,003 4...20 mA 60 °C analogue input circuit, 0,003 1...5 V 60 °C analogue input circuit, 0,003 +/- 5 V 60 °C analogue input circuit, 0,003 +/- 20 mA 60 °C analogue input circuit, 0,0016 4...20 mA 25 °C analogue input circuit, +/- 0.35 % +/- 10 V 25 °C analogue output
Operating rate 8 cyc/s tungsten <2.4 W discrete output, 1000 cyc/h inductive 1 A discrete output, 100 cyc/s resistive 1 A discrete output
Output load >= 3 kOhm +/- 10 V analogue output, <= 600 Ohm 0...20 mA analogue output
Electrical connection 2 connectors for removable terminal blocks
Environment
Protective treatment TC
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Product certifications FM Class 1 Division 2, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 18.000 cm
Package 1 Length 26.000 cm
Package 1 Weight 412.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.780 kg
