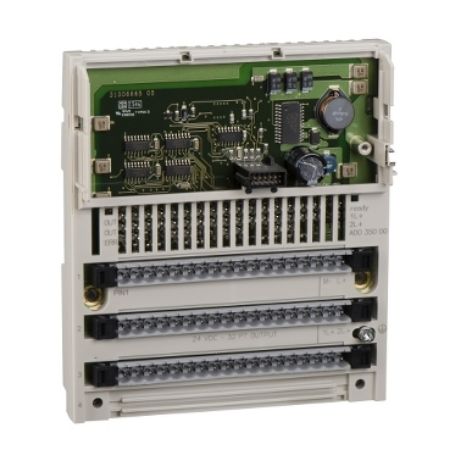

Picture of discrete input module Modicon Momentum - 32 Input 24 V DC
SKU:

170ADI35000

discrete input module Modicon Momentum - 32 Input 24 V DC

$1,796.30 INC GST
Available for Shipping : 24-Jul-2025
discrete input module Modicon Momentum - 32 Input 24 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
Environmental Disclosure
Instruction sheet
Declaration of conformity
User guide
Product Page Link
Product Data Sheet
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete input base DC module offers 2 groups of 16 inputs, conforming to IEC 1131-2 type 1 with positive discrete input logic. It is a module with discrete input voltage of 24V DC. There is an isolation between channels and ground at 500V AC. It features 32 LEDs for channel status signaling. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height). It weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name Attribute value
Main
Protective treatment TC
Discrete input number 32 conforming to IEC 1131-2 Type 1
Discrete input voltage 24 V DC
Range of product Modicon Momentum automation platform
Group of channels 2 groups of 16 inputs
Product or component type discrete inputs base DC
Complementary
Voltage state 1 guaranteed 11...30 V
Discrete input logic positive
Current state 1 guaranteed >= 2.5 mA
Input voltage limits 24 V
Voltage range - 3...30 V
Marking CE
Isolation between channels and bus 500 V AC
Height 141.5 mm
Depth 47.5 mm
Width 125 mm
Input resistance 4 kOhm
Local signalling 32 LEDs for channel status
Voltage state 0 guaranteed -3...5 V
Net weight 0.2 kg
Response time 3.3 ms from state 1 to state 0, 2.2 ms from state 0 to state 1
Current state 0 guaranteed <= 1.2 mA
Current consumption <= 250 mA at 24 V DC
Terminals description PLC n°1 TB, (3)IN_DIS#3, (1)IN_DIS#1, (11)IN_DIS#11, (15)IN_DIS#15, (13)IN_DIS#13, (16)IN_DIS#16, (M-)PW_NEG, (8)IN_DIS#8, (2)IN_DIS#2, (10)IN_DIS#10, (6)IN_DIS#6, (4)IN_DIS#4, (7)IN_DIS#7, (14)IN_DIS#14, (9)IN_DIS#9, (12)IN_DIS#12, (L+)PW_POS, (5)IN_DIS#5
Terminals description PLC n°2 (15)IN_DIS#31, (7)IN_DIS#23, (14)IN_DIS#30, (12)IN_DIS#28, (3)IN_DIS#19, (9)IN_DIS#25, (5)IN_DIS#21, (10)IN_DIS#26, (2L+)PW_POS, (2)IN_DIS#18, (1)IN_DIS#17, (16)IN_DIS#32, (6)IN_DIS#22, (8)IN_DIS#24, (11)IN_DIS#27, (1L+)PW_POS, (4)IN_DIS#20, (13)IN_DIS#29, TB_1
Power dissipation 8.5 W maximum, 5.5 W typical
Environment
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.900 cm
Package 1 Width 18.300 cm
Package 1 Length 25.900 cm
Package 1 Weight 388.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.466 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 46.000 kg
