Picture of distributed analog output Modicon Momentum - 4 Output - 0..20 mA
SKU:

170AAO12000

distributed analog output Modicon Momentum - 4 Output - 0..20 mA

$5,001.81 INC GST
Available for Shipping : 31-Aug-2025
distributed analog output Modicon Momentum - 4 Output - 0..20 mA
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
User guide
Environmental Disclosure
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet

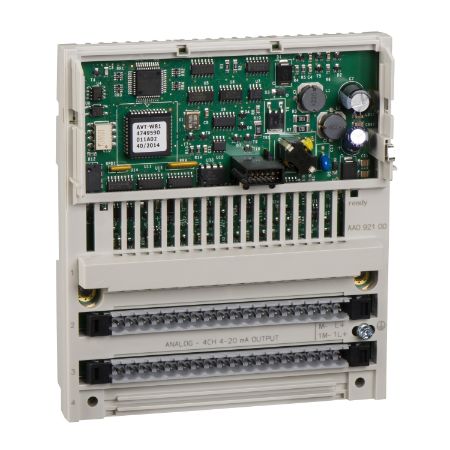

This output base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog output base offers 4 outputs with a full 16bit signed resolution. It offers analog output ranges from ±10V, 0mA to 2mA. There is an isolation between channels and ground at 500V AC. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Products specifications

Attribute name Attribute value
Main
Range of product Modicon Momentum automation platform
Product or component type analogue output base
Complementary
Maximum load capacitance 1 µF
Protection type internal 2 A slow-blow
Update time 2 ms
Module format standard
Output short-circuit protection with in voltage circuit
Analogue output number 4
Maximum power dissipation in W 8.5 W
Full scale 2 mA 0...20 mA, 10 V +/- 10 V
Marking CE
Data format full 16 bits signed
Isolation between channels and ground 500 V AC for 1 minute
Temperature drift 30 %oFS/°C 0...20 mA 60 °C, 10 %oFS/°C +/- 10 V 60 °C
Height 125 mm
Reverse polarity protection internal
Depth 47.5 mm
Width 141.5 mm
Local signalling 4 LEDs for channel status
Permissible common mode voltage 250 V 47...63 Hz DC, 250 V 47...63 Hz AC between channels to ground
Absolute accuracy error +/- 0.4 % of full scale 0...20 mA 60 °C, +/- 0.3 % of full scale 0...20 mA 25 °C, +/- 0.25 % full scale +/- 10 V 60 °C, +/- 0.2 % of full scale +/- 10 V 25 °C
Analogue output range 0...20 mA 12 bits + sign <= 0.6 kOhm, +/- 10 V 12 bits + sign >= 1 kOhm
Net weight 0.215 kg
External power requirement 24 V DC, +/- 30 V DC
Fail state reset to zero, hold, reset to full scale
Current consumption 530 mA at 24 V DC base, 150 mA at 24 V DC actuator
Environment
Protective treatment TC
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Product certifications CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.500 cm
Package 1 Width 18.000 cm
Package 1 Length 25.500 cm
Package 1 Weight 380.000 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.226 kg
