SKU:

170AAI14000

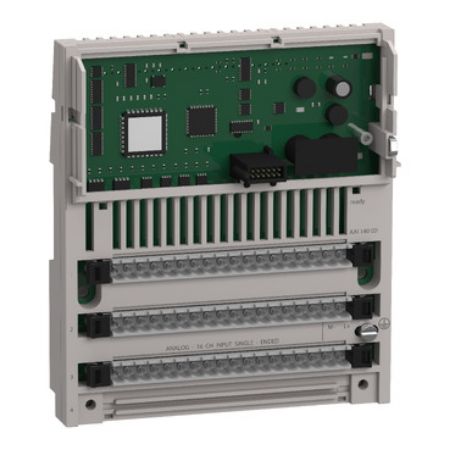

distributed analog input Modicon Momentum - 16 Input

$5,872.13 INC GST
Available for Shipping : 02-Oct-2025
distributed analog input Modicon Momentum - 16 Input
Be the first to review this product
Manufacturer: Schneider Electric
Circularity Profile
User guide
Environmental Disclosure
Instruction sheet
Declaration of conformity
Product Page Link
Product Data Sheet
This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input ranges from 4mA to 20mA, ±10V, ±5V. There is an isolation between channels and ground at 1780V AC, supply and ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 16 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. It is suitable for infrastructures and energy, material handling and simple machine control applications. This product is certified by CE, CSA, FM Class 1 Division 2 and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snaps together in various combinations to form versatile control systems or subsystems.

Products specifications

Attribute name Attribute value
Main
Analogue input type single ended
Analogue input range +/- 5 V 12 bits + sign > 2200 kOhm, +/- 10 V 12 bits + sign > 2200 kOhm, 4...20 mA 12 bits < 0.25 Ohm
Type of filter low pass input filter 10 kHz
Range of product Modicon Momentum automation platform
Analogue input number 16
Product or component type analogue input base
Complementary
Protection type internal 2 A slow-blow
Update time 25 ms
Maximum power dissipation in W 5.55 W
Full scale 5 V +/- 5 V, 16 mA 4...20 mA, 10 V +/- 10 V
Associated fuse rating 500 mA, fast blow
Marking CE
Data format full 16 bits signed
Isolation between channels and ground 1780 V AC for 1 minute
Temperature drift 60 %oFS/°C 4...20 mA 60 °C, 30 %oFS/°C +/- 5 V 60 °C, 30 %oFS/°C +/- 10 V 60 °C
Height 125 mm
Isolation between supply and ground 500 V for 1 minute
Reverse polarity protection internal
Depth 47.5 mm
Width 141.5 mm
Local signalling 16 LEDs for channel status
Permissible common mode voltage 250 V 47...63 Hz AC between channels to ground, 100 V 47...63 Hz DC between channels to ground
Absolute accuracy error +/- 0.45 % full scale 60 °C 4...20 mA, +/- 0.25 % full scale 60 °C +/- 5 V, +/- 0.25 % full scale 60 °C +/- 10 V, +/- 0.25 % full scale 25 °C 4...20 mA, +/- 0.15 % of full scale 25 °C +/- 5 V, +/- 0.15 % of full scale 25 °C +/- 10 V
Net weight 0.215 kg
External power requirement +/- 30 V DC
Current consumption 305 mA at 24 V DC
Electrical connection 2 connectors for removable terminal blocks
Environment
Protective treatment TC
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Operating altitude <= 5000 m
Product certifications CSA, FM Class 1 Division 2, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 18.0 cm
Package 1 Length 26.0 cm
Package 1 Weight 385.0 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 3.85 kg
Unit Type of Package 3 3
Number of Units in Package 3 80
Package 3 Height 75.0 cm
Package 3 Width 60.0 cm
Package 3 Length 80.0 cm
Package 3 Weight 46 kg
