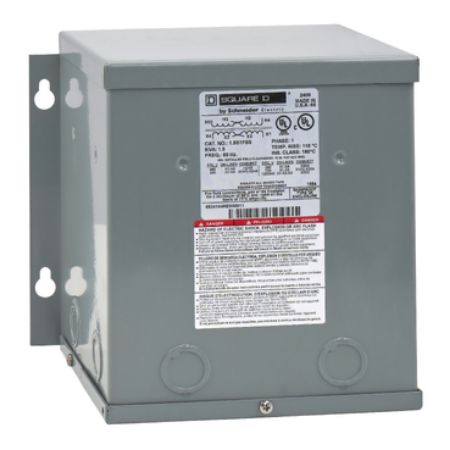

Picture of Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise
SKU:

1.5S1FSS

Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise

$3,962.64 INC GST
Available for Shipping : 08-Oct-2025
Transformer, dry type, encapsulated, 1.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 8A, 115C rise
  • General purpose transformer with resin encapsulation to protect and safe guard sensitive electronics
  • Enclosures range 50VA through 5kVA allowing for the most compact solutions in the industry
  • Applicable in low voltage applications
  • UL Listed
Be the first to review this product
Manufacturer: Square D
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 1.5 KVA. This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of stainless steel. Dimensions for this transformer are 8.25 in (H), 8.68 in (W), 6.56 in (D). This product complys to UL & CSA standards.

Products specifications

Attribute name Attribute value
Main
Primary voltage 240 x 480 V: 120/240 V
Product or component type Dry Sealed Transformer
Number of tap-offs 0 tap-offs
Complementary
Box number 8A
Depth 6.56 in
Width 8.68 in
Enclosure material stainless steel
Enclosure mounting wall mounted
Rated power in VA 1.5 kVA
Network number of phases 1 phase
Temperature rise 115 °C
Height 8.25 in
Environment
Insulation temperature 180 °C
NEMA degree of protection NEMA 3R
Product certifications CSA, cULus, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 24.638 cm
Package 1 Width 27.94 cm
Package 1 Length 32.512 cm
Package 1 Weight 19.051 kg
